C45-2DC24-72P

Active

Orion Fans

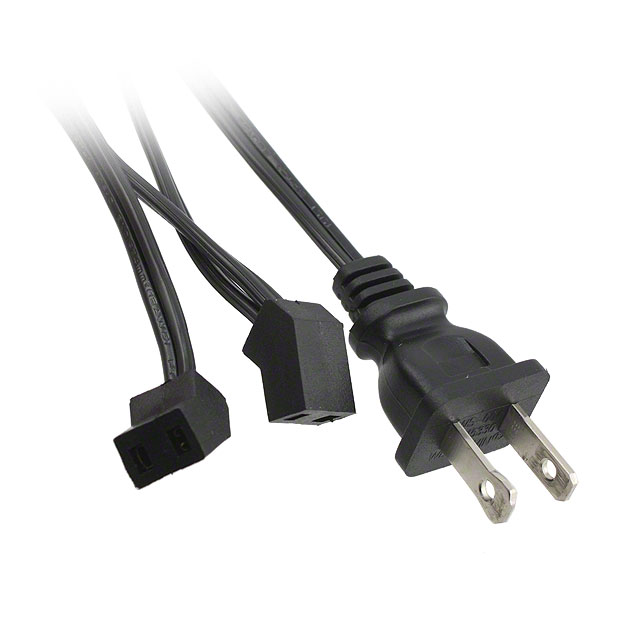

FAN CORD 45DEG 2POS 72" AC PLUG

Search across all available documentation for this part.

Active

Orion Fans

FAN CORD 45DEG 2POS 72" AC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	C45-2DC24-72P

1st Connector	Fan Terminal Receptacle 45° (2)
2nd Connector	NEMA 1-15 Plug
Approval Agency Marking	cURus, TUV
Cord Type	SPT-1
Features	Daisy Chain
Length	72 in
Length	1.83 m
Number of Conductors	2
Style	Female Receptacle to Male Plug
Wire Gauge	18 AWG

Part	Features	Wire Gauge	Length	Length	Style	1st Connector	Approval Agency Marking	Number of Conductors	2nd Connector	Cord Type	Length [x]	Length [x]
Orion Fans C45-2DC-72P	Daisy Chain	18 AWG	72 in	1.83 m	Female Receptacle to Male Plug	Fan Terminal Receptacle 45° (2)	cURus TUV	2	NEMA 1-15 Plug	SPT-1
Orion Fans C45-2DC-84	Daisy Chain	18 AWG			Female Receptacle to Cable	Fan Terminal Receptacle 45° (2)	cURus TUV	2	Open Wires	SPT-1	84 "	2.13 m
Orion Fans C45-2DC-24	Daisy Chain	18 AWG		304.8 mm	Female Receptacle to Cable	Fan Terminal Receptacle 45° (2)	cURus TUV	2	Open Wires	SPT-1	12 in
Orion Fans C45-2DC24-72P	Daisy Chain	18 AWG	72 in	1.83 m	Female Receptacle to Male Plug	Fan Terminal Receptacle 45° (2)	cURus TUV	2	NEMA 1-15 Plug	SPT-1
Orion Fans C45-2DC-144P	Daisy Chain	18 AWG			Female Receptacle to Male Plug	Fan Terminal Receptacle 45° (2)	cURus TUV	2	NEMA 1-15 Plug	SPT-1
Orion Fans C45-2DC-24P	Daisy Chain	18 AWG			Female Receptacle to Male Plug	Fan Terminal Receptacle 45° (2)	cURus TUV	2	NEMA 1-15 Plug	SPT-1	24 in	609.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 4.25

General part information

Fan Power Cord Fan Terminal Receptacle 45° (2) 72.0" (1.83m) NEMA 1-15 Plug

Technical documentation and resources

No documents available
