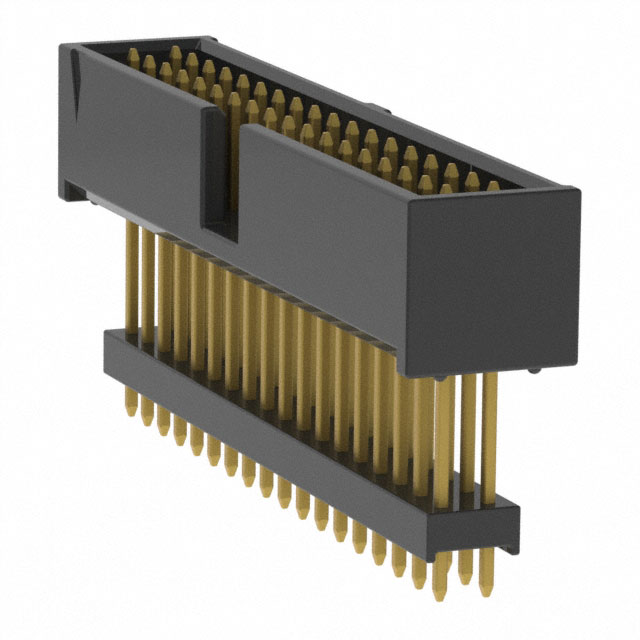

ZSS-118-03-G-D-715
ActiveSamtec Inc.
CONN HDR .100" 36POS
Deep-Dive with AI
Search across all available documentation for this part.
ZSS-118-03-G-D-715
ActiveSamtec Inc.
CONN HDR .100" 36POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZSS-118-03-G-D-715 |
|---|---|
| null | |
ZSS-118 Series
| Part | Contact Material | Termination | Insulation Color | Current Rating (Amps) | Mounting Type | Shrouding | Number of Positions | Contact Length - Post | Contact Length - Post | Number of Rows | Insulation Height [custom] | Insulation Height [custom] | Contact Type | Contact Finish - Post | Style | Material Flammability Rating | Contact Shape | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Features | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating | Contact Length - Mating | Connector Type | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Overall Contact Length [x] | Overall Contact Length [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | Phosphor Bronze | Solder | Black | 3 A | Through Hole | Shrouded - 4 Wall | 36 | 0.09 " | 2.29 mm | 2 | 0.84 in | 21.34 mm | Male Pin | Tin | Board to Board Cable | UL94 V-0 | Square | Polyester Glass Filled | 105 ░C | -55 °C | 0.93 in | 23.62 mm | All | 0.1 in | 2.54 mm | Keying Slot | Push-Pull | 2.54 mm | 0.1 in | 6.35 mm | 0.25 in | Elevated Header | |||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | Phosphor Bronze | Solder | Black | 3 A | Through Hole | Shrouded - 4 Wall | 36 | 0.09 " | 2.29 mm | 2 | Male Pin | Gold | Board to Board Cable | UL94 V-0 | Square | Polyester Glass Filled | 125 °C | -55 °C | All | 0.1 in | 2.54 mm | Keying Slot | Push-Pull | 2.54 mm | 0.1 in | 6.35 mm | 0.25 in | Elevated Header | Gold | 10 çin | 0.25 çm | 0.63 " | 16 mm | 3 µin | 0.076 µm | 0.54 in | 13.72 mm | ||||
Samtec Inc. |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.96 | |
Description
General part information
ZSS-118 Series
Connector Header position
