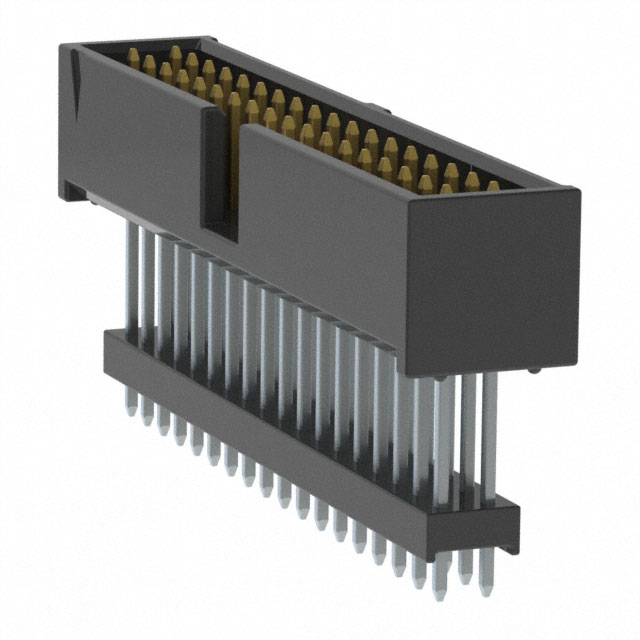

ZSS-118-03-L-D-715

Active

Samtec Inc.

CONN HDR .100" 36POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZSS-118-03-L-D-715

Active

Samtec Inc.

CONN HDR .100" 36POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-118-03-L-D-715

null

ZSS-118 Series

Part	Contact Material	Termination	Insulation Color	Current Rating (Amps)	Mounting Type	Shrouding	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Contact Finish - Post	Style	Material Flammability Rating	Contact Shape	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Features	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height
Samtec Inc. ZSS-118-01-S-D-450
Samtec Inc. ZSS-118-04-S-D-838
Samtec Inc. ZSS-118-02-G-D-615
Samtec Inc. ZSS-118-05-G-D-915
Samtec Inc. ZSS-118-07-S-D-1088
Samtec Inc. ZSS-118-04-T-D-840	Phosphor Bronze	Solder	Black	3 A	Through Hole	Shrouded - 4 Wall	36	0.09 "	2.29 mm	2	0.84 in	21.34 mm	Male Pin	Tin	Board to Board Cable	UL94 V-0	Square	Polyester Glass Filled	105 ░C	-55 °C	0.93 in	23.62 mm	All	0.1 in	2.54 mm	Keying Slot	Push-Pull	2.54 mm	0.1 in	6.35 mm	0.25 in	Elevated Header
Samtec Inc. ZSS-118-03-L-D-715
Samtec Inc. ZSS-118-04-G-D-780
Samtec Inc. ZSS-118-01-G-D-540	Phosphor Bronze	Solder	Black	3 A	Through Hole	Shrouded - 4 Wall	36	0.09 "	2.29 mm	2			Male Pin	Gold	Board to Board Cable	UL94 V-0	Square	Polyester Glass Filled	125 °C	-55 °C			All	0.1 in	2.54 mm	Keying Slot	Push-Pull	2.54 mm	0.1 in	6.35 mm	0.25 in	Elevated Header	Gold	10 çin	0.25 çm	0.63 "	16 mm	3 µin	0.076 µm	0.54 in	13.72 mm
Samtec Inc. ZSS-118-03-G-D-715

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.93

Description

General part information

ZSS-118 Series

Connector Header position

Documents

Technical documentation and resources
