2950129

Active

Phoenix Contact

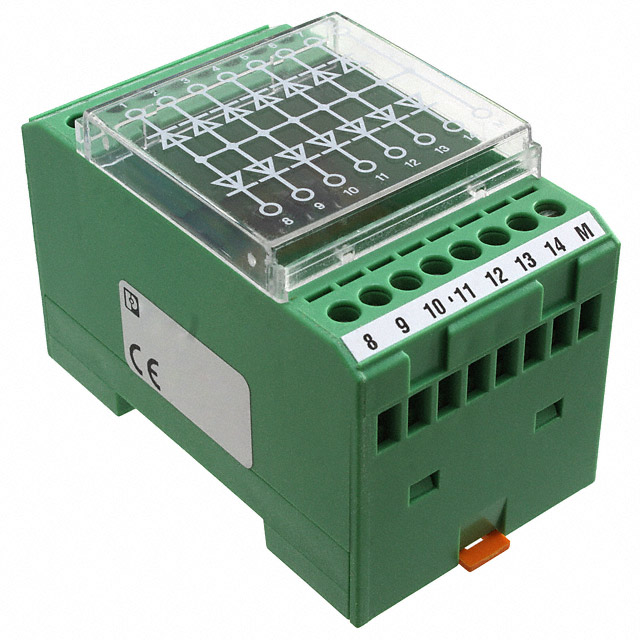

DIODE BLOCK, 14DIODE, 0.7A, COMMON ANODE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE BLOCK, 14DIODE, 0.7A, COMMON ANODE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	2950129

Current - Average Rectified (Io) (per Diode)	700 mA
Current - Reverse Leakage @ Vr	5 µA
Diode Configuration	14 Common Anode
Mounting Type	DIN Rail
Operating Temperature - Junction [Max]	50 °C
Operating Temperature - Junction [Min]	-20 °C
Package / Case	Housed Axial
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V

Part	Speed	Speed	Technology	Package / Case	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Current - Reverse Leakage @ Vr	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type
Phoenix Contact 2950132	Standard Recovery >500ns	200 mA	Standard	Module	700 mA	50 °C	-20 °C	Module	5 µA	7 Pair Common Cathode	1300 V	DIN Rail/Channel
Phoenix Contact 2950103	Standard Recovery >500ns	200 mA	Standard	Housed Axial	700 mA	50 °C	-20 °C	Module	5 µA	8 Independent	1300 V	DIN Rail
Phoenix Contact 2950116	Standard Recovery >500ns	200 mA	Standard	Housed Axial	700 mA	50 °C	-20 °C	Module	5 µA	14 Common Cathode	1300 V	DIN Rail
Phoenix Contact 2950129	Standard Recovery >500ns	200 mA	Standard	Housed Axial	700 mA	50 °C	-20 °C	Module	5 µA	14 Common Anode	1300 V	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 14 Common Anode 1300 V 700mA DIN Rail Housed Axial
