Phoenix Contact

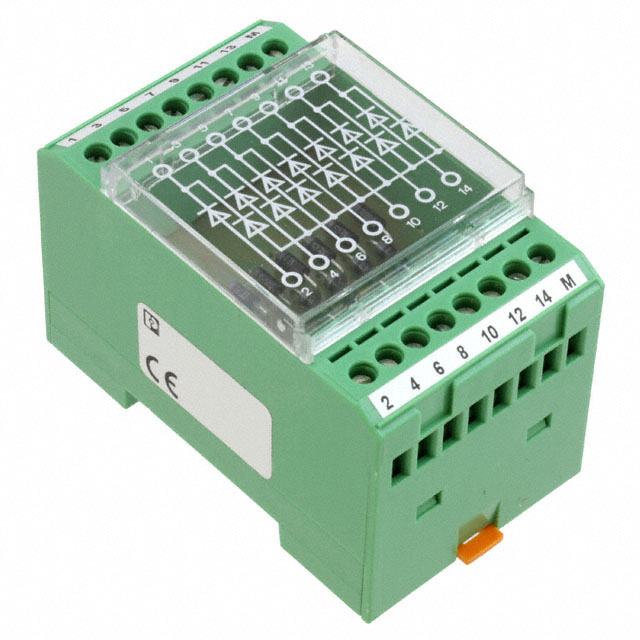

DIODE MODULE GP 1300V 700MA

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1300V 700MA

Technical Specifications

Parameters and characteristics for this part

Specification	2950132

Current - Average Rectified (Io) (per Diode)	700 mA
Current - Reverse Leakage @ Vr	5 µA
Diode Configuration	7 Pair Common Cathode
Mounting Type	DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C
Operating Temperature - Junction [Min]	-20 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V

Part	Speed	Speed	Technology	Package / Case	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Current - Reverse Leakage @ Vr	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type
Phoenix Contact 2950132	Standard Recovery >500ns	200 mA	Standard	Module	700 mA	50 °C	-20 °C	Module	5 µA	7 Pair Common Cathode	1300 V	DIN Rail/Channel
Phoenix Contact 2950103	Standard Recovery >500ns	200 mA	Standard	Housed Axial	700 mA	50 °C	-20 °C	Module	5 µA	8 Independent	1300 V	DIN Rail
Phoenix Contact 2950116	Standard Recovery >500ns	200 mA	Standard	Housed Axial	700 mA	50 °C	-20 °C	Module	5 µA	14 Common Cathode	1300 V	DIN Rail
Phoenix Contact 2950129	Standard Recovery >500ns	200 mA	Standard	Housed Axial	700 mA	50 °C	-20 °C	Module	5 µA	14 Common Anode	1300 V	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 7 Pair Common Cathode 1300 V 700mA DIN Rail/Channel Module
