C14D16P-A2

Active

CUI Devices

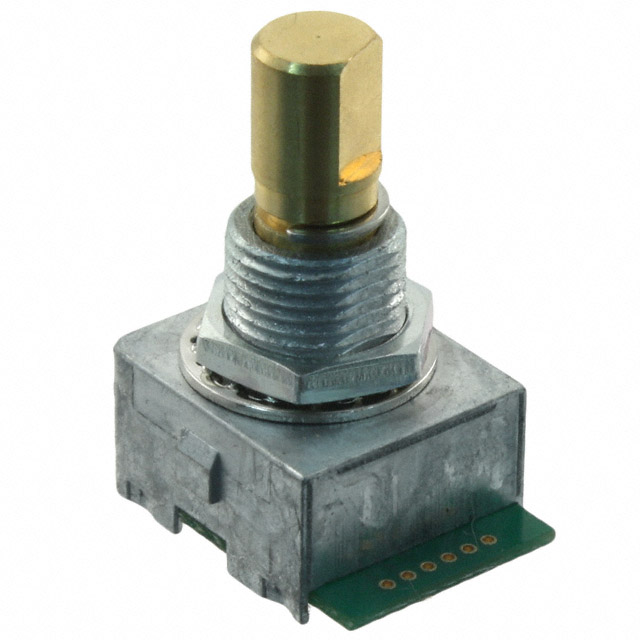

ROTARY ENCODER OPTICAL 16PPR

Search across all available documentation for this part.

Active

CUI Devices

ROTARY ENCODER OPTICAL 16PPR

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Actuator Type	Actuator Type	Rotational Life (Cycles Min)	Output Type	Orientation	Pulses per Revolution	Encoder Type	Termination Style	Mounting Type
CUI Devices C14D16P-B3PA	4.75 V	5.25 V	0.25	Flatted End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Cable with Connector
CUI Devices C14D16P-C3			0.25	Flatted End	1M	Quadrature (Incremental)	Vertical	16	Optical	PC Pin	Panel PCB Through Hole
CUI Devices C14D16P-A2PA	4.75 V	5.25 V		6mm Dia Round End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Solder Lug
CUI Devices C14D16P-D1	4.75 V	5.25 V		1/8" Dia Flatted End	1M	Quadrature (Incremental)	Right Angle	16	Optical	PC Pin	Panel PCB Through Hole
CUI Devices C14D16P-A2P	4.75 V	5.25 V		6mm Dia Round End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Solder Lug
CUI Devices C14D16P-B3P	4.75 V	5.25 V	0.25	Flatted End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Cable with Connector
CUI Devices C14D16P-A2				6mm Dia Round End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 15.07

General part information

Rotary Encoder Optical 16 Quadrature (Incremental) Right Angle

Technical documentation and resources
