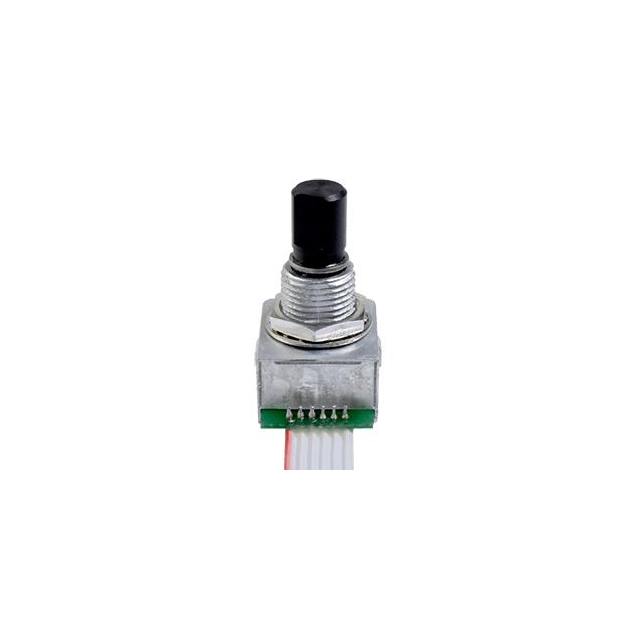

C14D16P-B3P

Active

CUI Devices

15 MM, 16 PPR, 6.35 MM PLASTIC S

Search across all available documentation for this part.

Active

CUI Devices

15 MM, 16 PPR, 6.35 MM PLASTIC S

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Actuator Type	Actuator Type	Rotational Life (Cycles Min)	Output Type	Orientation	Pulses per Revolution	Encoder Type	Termination Style	Mounting Type
CUI Devices C14D16P-B3PA	4.75 V	5.25 V	0.25	Flatted End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Cable with Connector
CUI Devices C14D16P-C3			0.25	Flatted End	1M	Quadrature (Incremental)	Vertical	16	Optical	PC Pin	Panel PCB Through Hole
CUI Devices C14D16P-A2PA	4.75 V	5.25 V		6mm Dia Round End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Solder Lug
CUI Devices C14D16P-D1	4.75 V	5.25 V		1/8" Dia Flatted End	1M	Quadrature (Incremental)	Right Angle	16	Optical	PC Pin	Panel PCB Through Hole
CUI Devices C14D16P-A2P	4.75 V	5.25 V		6mm Dia Round End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Solder Lug
CUI Devices C14D16P-B3P	4.75 V	5.25 V	0.25	Flatted End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Cable with Connector
CUI Devices C14D16P-A2				6mm Dia Round End	1M	Quadrature (Incremental)	Right Angle	16	Optical	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	125	$ 23.20

General part information

15 MM, 16 PPR, 6.35 MM PLASTIC S

Technical documentation and resources
