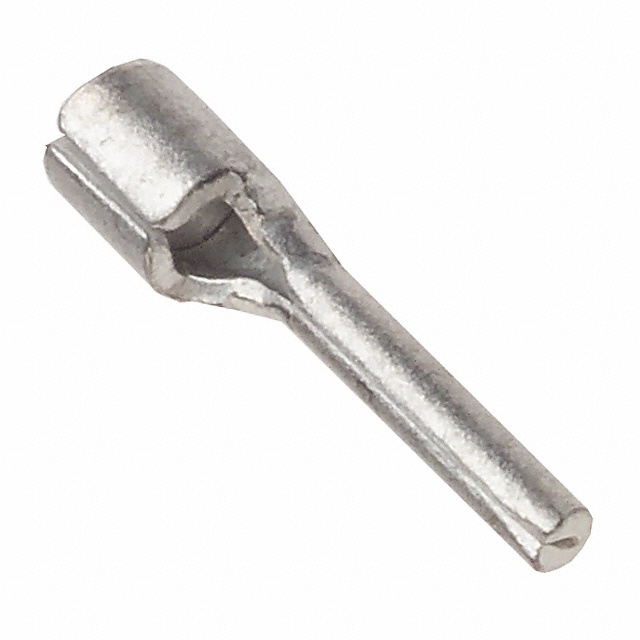

0192110006

Active

Molex

CONN WIRE PIN TERM 14-16AWG

Search across all available documentation for this part.

Active

Molex

CONN WIRE PIN TERM 14-16AWG

Technical Specifications

Parameters and characteristics for this part

Specification	0192110006

Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel ID [diameter]	0.081 in
Diameter - Barrel ID [diameter]	2.06 mm
Insulation	Non-Insulated
Insulation Diameter [diameter]	2.06 mm
Insulation Diameter [diameter]	0.081 in
Length - Overall [x]	17.78 mm
Length - Overall [x]	0.7 in
Length - Pin [x]	0.37 in
Length - Pin [x]	9.4 mm
Length - Termination	4.19 mm
Length - Termination	0.165 in
Pin Diameter [diameter]	0.078 in
Pin Diameter [diameter]	1.98 mm
Termination	Crimp

Part	Insulation	Pin Diameter [diameter]	Pin Diameter [diameter]	Termination	Contact Finish	Contact Material	Length - Pin [x]	Length - Pin [x]	Length - Termination	Length - Termination	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]
Molex 0192110005	Non-Insulated	0.078 in	1.98 mm	Crimp	Electro-Tin	Copper	8.89 mm	0.35 in	4.19 mm	0.165 in	0.081 in	2.06 mm	17.27 mm	0.68 in
Molex 0192110004	Non-Insulated	0.078 in	1.98 mm	Crimp	Electro-Tin	Copper	8.89 mm	0.35 in	4.19 mm	0.165 in	0.054 in	1.37 mm	17.27 mm	0.68 in	22 AWG	17.5 AWG
Molex 0192110006	Non-Insulated	0.078 in	1.98 mm	Crimp	Tin	Copper	9.4 mm	0.37 in	4.19 mm	0.165 in	0.081 in	2.06 mm	17.78 mm	0.7 in			2.06 mm	0.081 in
Molex 0192110001	Non-Insulated	0.107 in	2.72 mm	Crimp	Electro-Tin	Copper			6.25 mm	0.246 "			0.785 in		12 AWG	10 AWG	3.45 mm	0.136 in	19.94 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7500	$ 0.14

General part information

Wire Pin Terminal Connector 14-16 AWG Krimptite Crimp
