0192110004

Active

Molex

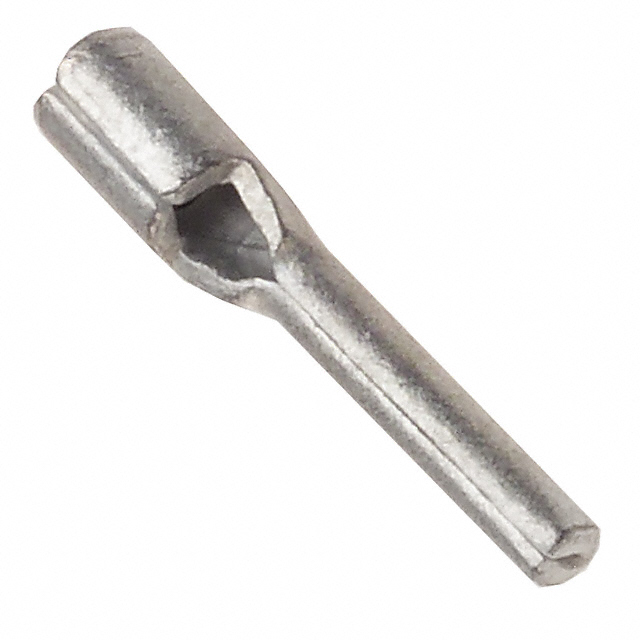

CONN WIRE PIN TERM 18-22AWG

Search across all available documentation for this part.

Active

Molex

CONN WIRE PIN TERM 18-22AWG

Technical Specifications

Parameters and characteristics for this part

Part	Insulation	Pin Diameter [diameter]	Pin Diameter [diameter]	Termination	Contact Finish	Contact Material	Length - Pin [x]	Length - Pin [x]	Length - Termination	Length - Termination	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]
Molex 0192110005	Non-Insulated	0.078 in	1.98 mm	Crimp	Electro-Tin	Copper	8.89 mm	0.35 in	4.19 mm	0.165 in	0.081 in	2.06 mm	17.27 mm	0.68 in
Molex 0192110004	Non-Insulated	0.078 in	1.98 mm	Crimp	Electro-Tin	Copper	8.89 mm	0.35 in	4.19 mm	0.165 in	0.054 in	1.37 mm	17.27 mm	0.68 in	22 AWG	17.5 AWG
Molex 0192110006	Non-Insulated	0.078 in	1.98 mm	Crimp	Tin	Copper	9.4 mm	0.37 in	4.19 mm	0.165 in	0.081 in	2.06 mm	17.78 mm	0.7 in			2.06 mm	0.081 in
Molex 0192110001	Non-Insulated	0.107 in	2.72 mm	Crimp	Electro-Tin	Copper			6.25 mm	0.246 "			0.785 in		12 AWG	10 AWG	3.45 mm	0.136 in	19.94 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Pin Terminal Connector 18-22 AWG Krimptite Crimp

Technical documentation and resources

No documents available
