YB15WSKG01

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

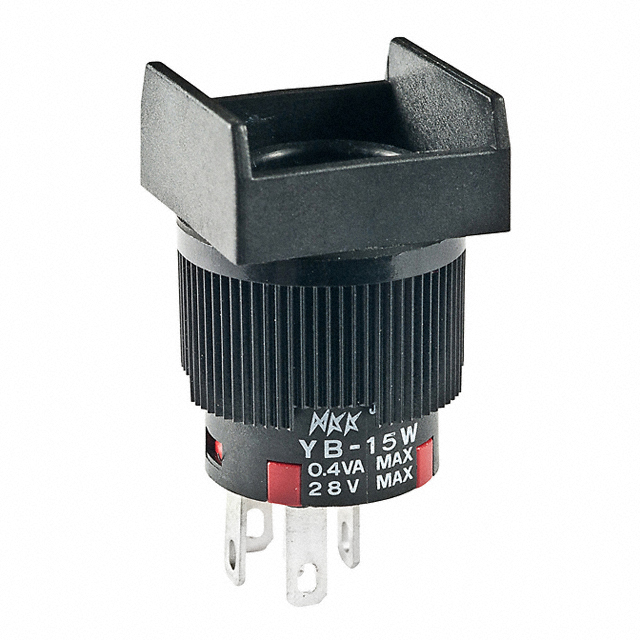

YB15WSKG01

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15WSKG01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB15WS Series

Part	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Actuator Marking	Mechanical Life	Ingress Protection	Type	Voltage Rating - AC	Actuator Type	Electrical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Features	Circuit	Switch Function	Illumination Type, Color	Termination Style	Termination Style	Illumination Voltage (Nominal)	Color - Actuator/Cap
NKK Switches YB15WSKW03	30 V	3 A	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Standard	125 V	Plunger for Cap	100000 Cycles	PC Pin	70 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom
NKK Switches YB15WSKG01-2CF02-JB	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green/Red LED	0.11 in	2.8 mm	2 VDC	Clear
NKK Switches YB15WSKG03-2CF02-JB	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	PC Pin	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green/Red LED			2.1 VDC	Clear
NKK Switches YB15WSKG01-2CF24-JB	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green/Red LED	0.11 in	2.8 mm	24 V	Clear
NKK Switches YB15WSKW01-1F02-JB	30 V	3 A	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	125 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green LED	0.11 in	2.8 mm	2 VDC	Clear
NKK Switches YB15WSKG01-5D12-JB	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Amber LED	0.11 in	2.8 mm	12 VDC	Clear
NKK Switches YB15WSKW01-1F24-JF	30 V	3 A	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	125 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green LED	0.11 in	2.8 mm	24 V	Clear
NKK Switches YB15WSKW01-5C05-JB	30 V	3 A	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	125 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	LED Red	0.11 in	2.8 mm	5 VDC	Clear
NKK Switches YB15WSKG01-5F05-JF	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green LED	0.11 in	2.8 mm	5 VDC	Clear
NKK Switches YB15WSKG01	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Standard	28 V	Plunger for Cap	100000 Cycles	Quick Connect Solder	70 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom		0.11 in	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.72
		10	$ 13.20
		25	$ 12.62
		50	$ 11.97
		100	$ 11.53
		250	$ 10.81
		500	$ 10.01
		1000	$ 8.70
Newark	Each	1	$ 27.90
		5	$ 26.50
		10	$ 24.56
		25	$ 22.41
		50	$ 19.39
		100	$ 18.10
		250	$ 16.48

Description

General part information

YB15WS Series

Pushbutton Switch SPDT Standard Panel Mount, Front

Documents

Technical documentation and resources
