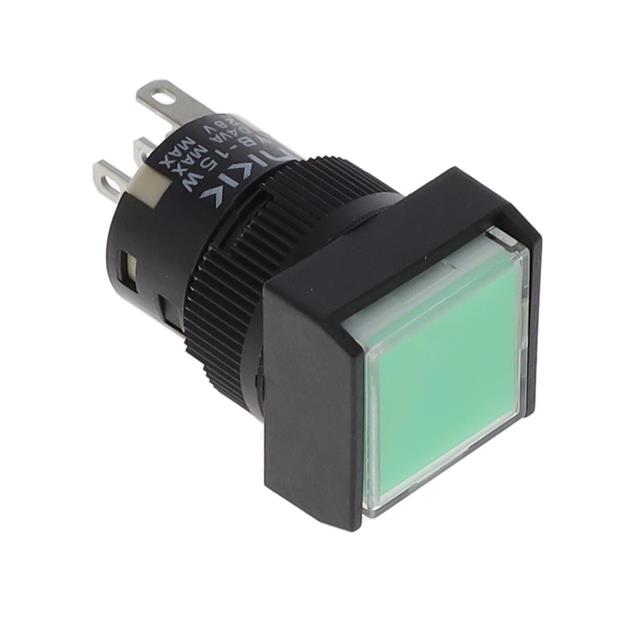

YB15WSKG01-5F05-JF

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15WSKG01-5F05-JF

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	5 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB15WS Series

Part	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Actuator Marking	Mechanical Life	Ingress Protection	Type	Voltage Rating - AC	Actuator Type	Electrical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Features	Circuit	Switch Function	Illumination Type, Color	Termination Style	Termination Style	Illumination Voltage (Nominal)	Color - Actuator/Cap
NKK Switches YB15WSKW03	30 V	3 A	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Standard	125 V	Plunger for Cap	100000 Cycles	PC Pin	70 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom
NKK Switches YB15WSKG01-2CF02-JB	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green/Red LED	0.11 in	2.8 mm	2 VDC	Clear
NKK Switches YB15WSKG03-2CF02-JB	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	PC Pin	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green/Red LED			2.1 VDC	Clear
NKK Switches YB15WSKG01-2CF24-JB	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green/Red LED	0.11 in	2.8 mm	24 V	Clear
NKK Switches YB15WSKW01-1F02-JB	30 V	3 A	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	125 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green LED	0.11 in	2.8 mm	2 VDC	Clear
NKK Switches YB15WSKG01-5D12-JB	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Amber LED	0.11 in	2.8 mm	12 VDC	Clear
NKK Switches YB15WSKW01-1F24-JF	30 V	3 A	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	125 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green LED	0.11 in	2.8 mm	24 V	Clear
NKK Switches YB15WSKW01-5C05-JB	30 V	3 A	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	125 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	LED Red	0.11 in	2.8 mm	5 VDC	Clear
NKK Switches YB15WSKG01-5F05-JF	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Illuminated Standard	28 V	Button Square	100000 Cycles	Quick Connect Solder	50 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom	Green LED	0.11 in	2.8 mm	5 VDC	Clear
NKK Switches YB15WSKG01	28 V	0.4 VA	Panel Mount Front	No Marking	1000000 Cycles	IP65 - Dust Tight Water Resistant	Standard	28 V	Plunger for Cap	100000 Cycles	Quick Connect Solder	70 °C	-25 °C	16 mm	Tactile Feedback	SPDT	On-Mom		0.11 in	2.8 mm
