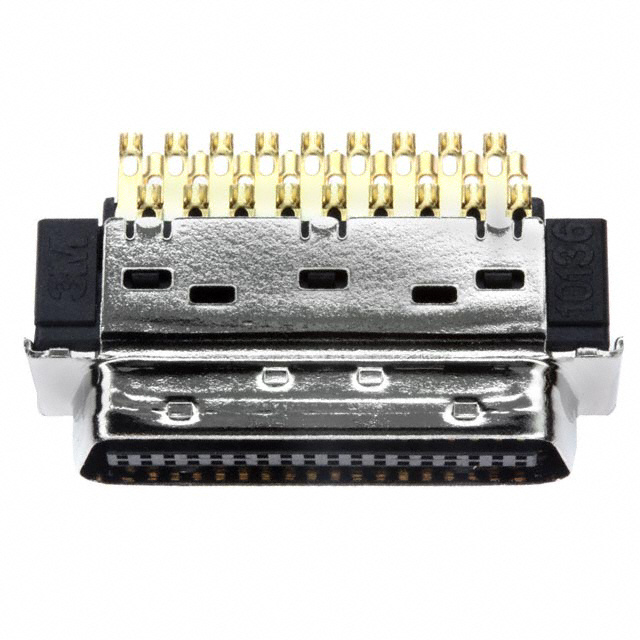

10136-3000PE

Active

3M (TC)

CONN PLUG 36POS STR SLDR CUP

Search across all available documentation for this part.

Active

3M (TC)

CONN PLUG 36POS STR SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Flange Feature	Number of Rows	Features	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Connector Style	Termination	Flange Feature	Type
3M (TC) 10136-5212PC	Panel Mount Right Angle Through Hole	M2.5	2	Shielded	Gold	0.76 Ám	30 Áin	36	Plug	Center Strip Contacts	Solder
3M (TC) 10136-7212VC	Panel Mount Right Angle Through Hole	M2.5	2	Shielded	Gold	0.76 Ám	30 Áin	36	Plug	Center Strip Contacts	Solder
3M (TC) 10136-3000PE	Free Hanging (In-Line)		2	Shielded	Gold	0.51 µm	20 µin	36	Plug	Center Strip Contacts
3M (TC) 10136-72B2VC	Panel Mount Right Angle Through Hole	Housing/Shell	2	Board Lock Shielded	Gold	0.76 Ám	30 Áin	36	Plug	Center Strip Contacts	Solder	2.6 M
3M (TC) 10136-52B2VC	Panel Mount Right Angle Through Hole	Housing/Shell	2	Board Lock Shielded	Gold	0.76 Ám	30 Áin	36	Plug	Center Strip Contacts	Solder	2.6 M	Board to Board
