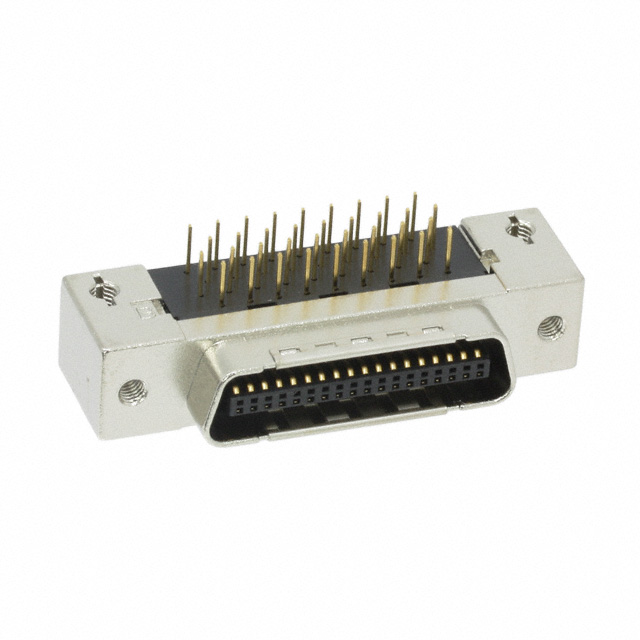

10136-5212PC

Active

3M (TC)

JE150344768 10136-5212PC=36/MDR/RC/RA/PLUG/SCWLK/30MIN

Search across all available documentation for this part.

Active

3M (TC)

JE150344768 10136-5212PC=36/MDR/RC/RA/PLUG/SCWLK/30MIN

Technical Specifications

Parameters and characteristics for this part

Specification	10136-5212PC

Connector Style	Center Strip Contacts
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded
Flange Feature	M2.5
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	36
Number of Rows	2
Termination	Solder

Part	Mounting Type	Flange Feature	Number of Rows	Features	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Connector Style	Termination	Flange Feature	Type
3M (TC) 10136-5212PC	Panel Mount Right Angle Through Hole	M2.5	2	Shielded	Gold	0.76 Ám	30 Áin	36	Plug	Center Strip Contacts	Solder
3M (TC) 10136-7212VC	Panel Mount Right Angle Through Hole	M2.5	2	Shielded	Gold	0.76 Ám	30 Áin	36	Plug	Center Strip Contacts	Solder
3M (TC) 10136-3000PE	Free Hanging (In-Line)		2	Shielded	Gold	0.51 µm	20 µin	36	Plug	Center Strip Contacts
3M (TC) 10136-72B2VC	Panel Mount Right Angle Through Hole	Housing/Shell	2	Board Lock Shielded	Gold	0.76 Ám	30 Áin	36	Plug	Center Strip Contacts	Solder	2.6 M
3M (TC) 10136-52B2VC	Panel Mount Right Angle Through Hole	Housing/Shell	2	Board Lock Shielded	Gold	0.76 Ám	30 Áin	36	Plug	Center Strip Contacts	Solder	2.6 M	Board to Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position Plug Connector Panel Mount, Through Hole, Right Angle Solder
