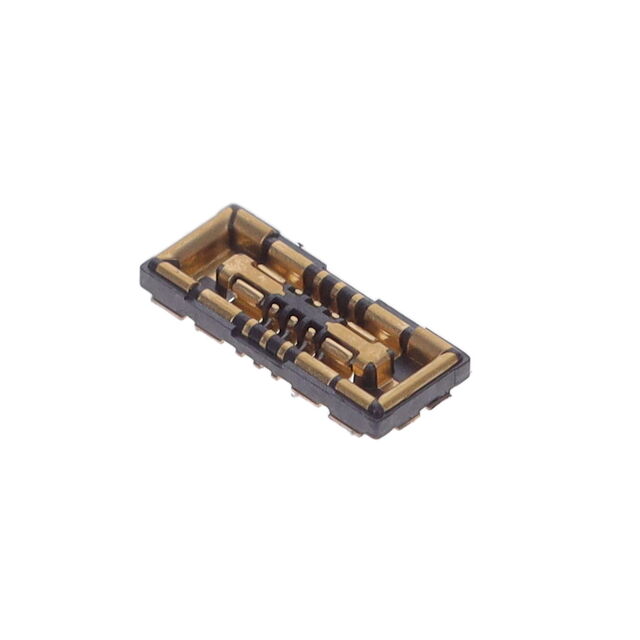

BK22C07-6DS/2-0.4V(800)
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR, 8 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.016 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BK22C07-6DS/2-0.4V(800)
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR, 8 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.016 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BK22C07-6DS/2-0.4V(800) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.026 in |
| Height Above Board | 0.65 mm |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions [custom] | 8 |
| Number of Positions [custom] | 6 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.32 | |
| 10 | $ 1.11 | |||
| 25 | $ 1.07 | |||
| 50 | $ 1.05 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.66 | |||
| Digi-Reel® | 1 | $ 1.32 | ||
| 10 | $ 1.11 | |||
| 25 | $ 1.07 | |||
| 50 | $ 1.05 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.66 | |||
| Tape & Reel (TR) | 20000 | $ 0.56 | ||
Description
General part information
BK22C07 Series
8 (6 + 2 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
