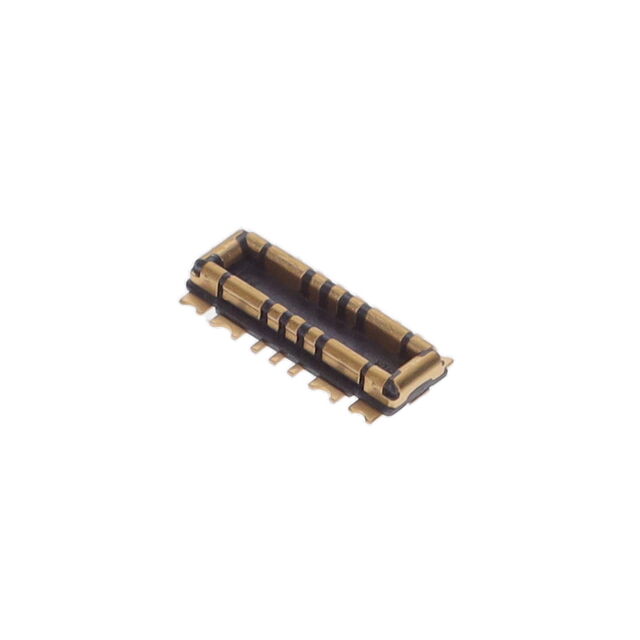

BK22C07-6DP/2-0.4V(800)

Active

Hirose Electric USA, Inc.

PLUG, 6POS., 0.4MM PITCH, 15A

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

PLUG, 6POS., 0.4MM PITCH, 15A

Technical Specifications

Parameters and characteristics for this part

Specification	BK22C07-6DP/2-0.4V(800)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.024 in
Height Above Board	0.61 mm
Mated Stacking Heights	0.7 mm
Mounting Type	Surface Mount
Number of Positions [custom]	8
Number of Positions [custom]	6
Number of Positions [custom]	2
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Rows	Mounting Type	Connector Type	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish
Hirose Electric USA, Inc. BK22C07-6DP/2-0.4V(800)	8	6	2	2	Surface Mount	Header Outer Shroud Contacts	Solder Retention	0.024 in	0.61 mm	0.7 mm	0.016 in	0.4 mm	Gold
Hirose Electric USA, Inc. BK22C07-6DS/2-0.4V(800)	8	6	2	2	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	0.026 in	0.65 mm	0.7 mm	0.016 in	0.4 mm	Gold
Hirose Electric USA, Inc. BK22C07-4DS/2-0.4V(800)	6	4	2	2	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	0.026 in	0.65 mm	0.7 mm	0.016 in	0.4 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (6 + 2 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
