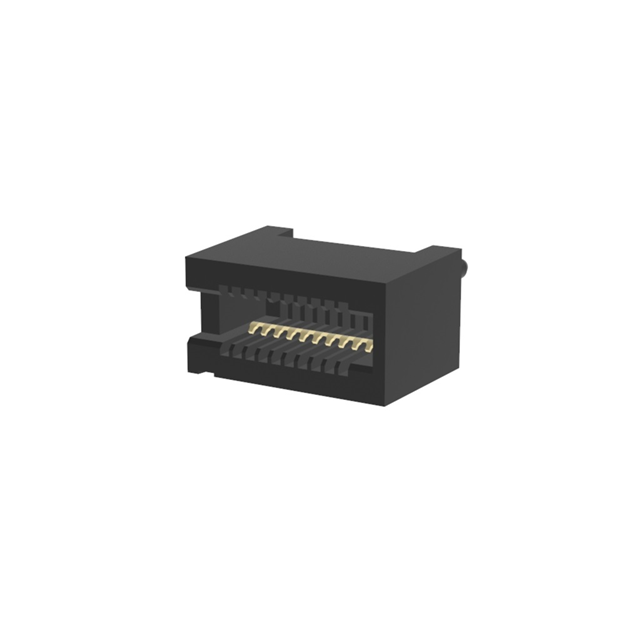

MBB-VM-10-93-30-00

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 20POS 0.031

Search across all available documentation for this part.

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 20POS 0.031

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Number of Positions	Read Out	Contact Finish	Number of Rows	Contact Type	Termination	Features	Gender	Color
CarlisleIT MBB-VM-10-93-30-ST	Surface Mount	-55 °C	125 °C	0.76 Ám	30 Áin	Non Specified - Dual Edge	0.8 mm	0.031 in	0.093 in	2.36 mm	20	Dual	Gold	2	Cantilever	Solder	Board Guide Solder Retention	Female	Black
CarlisleIT MBB-VM-10-62-30-00	Surface Mount	-55 °C	125 °C	0.76 Ám	30 Áin	Non Specified - Dual Edge	0.8 mm	0.031 in	0.062 in	1.57 mm	20	Dual	Gold	2	Cantilever	Solder	Board Guide	Female	Black
CarlisleIT MBB-VM-10-93-30-00	Surface Mount	-55 °C	125 °C	0.76 Ám	30 Áin	Non Specified - Dual Edge	0.8 mm	0.031 in	0.093 in	2.36 mm	20	Dual	Gold	2	Cantilever	Solder	Board Guide	Female	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.35

General part information

20 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black

Technical documentation and resources

No documents available
