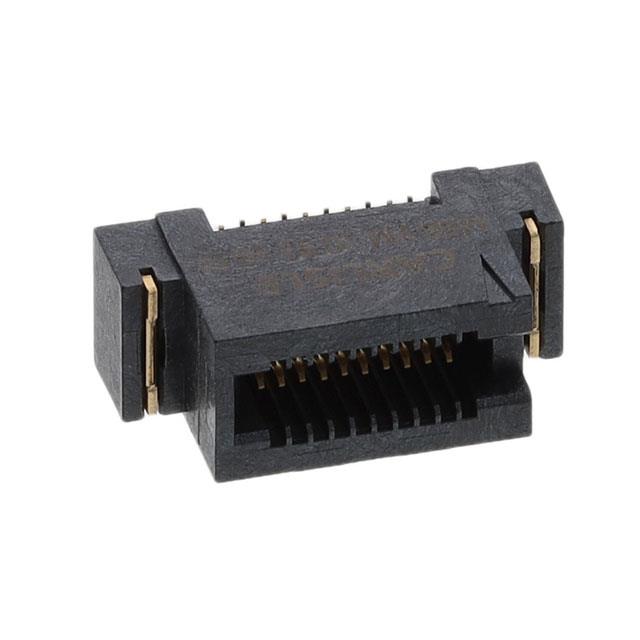

MBB-VM-10-93-30-ST

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 20POS 0.031

Search across all available documentation for this part.

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 20POS 0.031

Technical Specifications

Parameters and characteristics for this part

Specification	MBB-VM-10-93-30-ST

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Cantilever
Features	Solder Retention, Board Guide
Gender	Female
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Number of Positions	Read Out	Contact Finish	Number of Rows	Contact Type	Termination	Features	Gender	Color
CarlisleIT MBB-VM-10-93-30-ST	Surface Mount	-55 °C	125 °C	0.76 Ám	30 Áin	Non Specified - Dual Edge	0.8 mm	0.031 in	0.093 in	2.36 mm	20	Dual	Gold	2	Cantilever	Solder	Board Guide Solder Retention	Female	Black
CarlisleIT MBB-VM-10-62-30-00	Surface Mount	-55 °C	125 °C	0.76 Ám	30 Áin	Non Specified - Dual Edge	0.8 mm	0.031 in	0.062 in	1.57 mm	20	Dual	Gold	2	Cantilever	Solder	Board Guide	Female	Black
CarlisleIT MBB-VM-10-93-30-00	Surface Mount	-55 °C	125 °C	0.76 Ám	30 Áin	Non Specified - Dual Edge	0.8 mm	0.031 in	0.093 in	2.36 mm	20	Dual	Gold	2	Cantilever	Solder	Board Guide	Female	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black

Technical documentation and resources

No documents available
