174-E25-113R461
ActiveMH Connectors

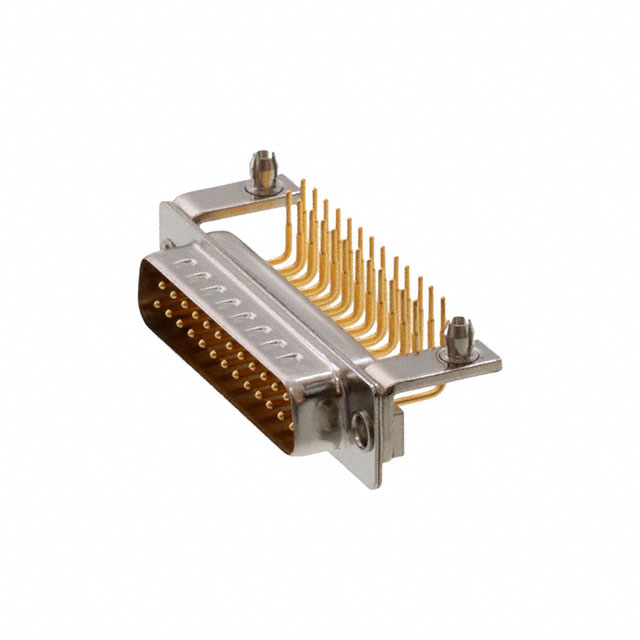

D SUB CONNECTOR, DB25, STANDARD, PLUG, 174-E M SERIES, 25 CONTACTS, DB, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
174-E25-113R461
ActiveMH Connectors
D SUB CONNECTOR, DB25, STANDARD, PLUG, 174-E M SERIES, 25 CONTACTS, DB, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 174-E25-113R461 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
174-E25 Series
25 Position D-Sub Plug, Male Pins Connector
