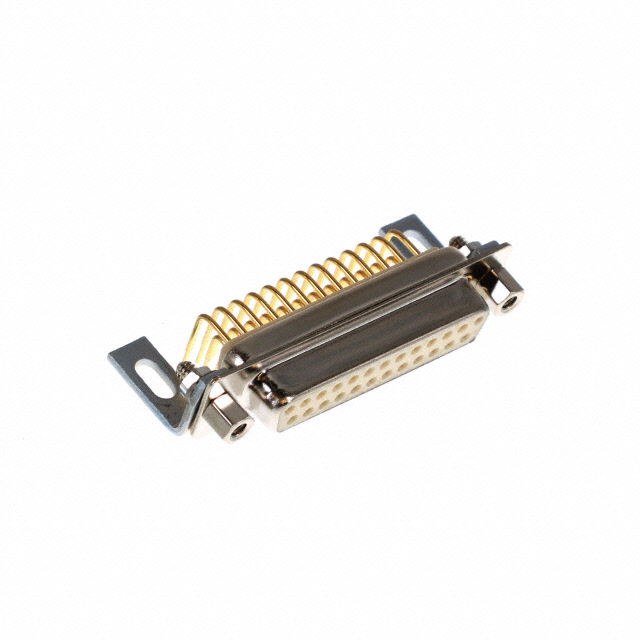

174-E25-213R141 - 174-E25-213R141

174-E25-213R141

Active
MH Connectors

D SUB CONNECTOR, DB25, STANDARD, RECEPTACLE, 174-E M SERIES, 25 CONTACTS, DB, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+4
174-E25-213R141 - 174-E25-213R141

174-E25-213R141

Active
MH Connectors

D SUB CONNECTOR, DB25, STANDARD, RECEPTACLE, 174-E M SERIES, 25 CONTACTS, DB, SOLDER

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+4

Technical Specifications

Parameters and characteristics for this part

Specification174-E25-213R141
Backset Spacing9.4 mm
Backset Spacing0.37 in
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
FeaturesMounting Brackets
Flange FeatureFemale Screwlock (4-40), Mating Side
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DB, B
Shell Size, Connector Layout [custom]3
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 18.59
10$ 14.31
25$ 12.95
40$ 12.31
80$ 11.45
230$ 10.29
440$ 9.66
945$ 8.99
NewarkEach 500$ 10.59
1000$ 9.73
5000$ 9.51

Description

General part information

174-E25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
