1116-6097
ActiveAmphenol SV Microwave
2.4MM FEMALE TO FEMALE FLANGE MO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1116-6097
ActiveAmphenol SV Microwave
2.4MM FEMALE TO FEMALE FLANGE MO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1116-6097 |
|---|---|
| Adapter Series [Max] | 2.4 mm |
| Adapter Series [Min] | 2.4 mm |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 2.4 mm |
| Convert To (Adapter End) | 2.4 mm |
| Frequency - Max [Max] | 50 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
1116-60 Series
| Part | Mating Cycles | Fastening Type | Body Material | Features | Conversion Type | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Center Contact Material | Mounting Feature | Frequency - Max [Max] | Convert From (Adapter End) | Adapter Series | Adapter Series | Style | Impedance | Center Contact Plating | Adapter Type | Convert From (Adapter End) | Center Gender | Adapter Series [Max] | Adapter Series [Min] | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol SV Microwave | 500 | Snap-On Threaded | Stainless Steel | Smooth Bore | Between Series | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 2.4 mm | Beryllium Copper | Flange | 50 GHz | SMPM Plug Male Pin | SMPM | 2.4 mm | Straight | 50 Ohms | Gold | Plug to Jack | |||||
Amphenol SV Microwave | 500 | Snap-On Threaded | Stainless Steel | Smooth Bore | Between Series | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 2.4 mm | Beryllium Copper | Flange | 40 GHz | SMP Plug Male Pin | SMP | 2.4 mm | Straight | 50 Ohms | Gold | Plug to Jack | |||||
Amphenol SV Microwave | 500 | Snap-On Threaded | Stainless Steel | Full Detent | Between Series | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 2.4 mm | Beryllium Copper | Flange | 40 GHz | SMP Plug Male Pin | SMP | 2.4 mm | Straight | 50 Ohms | Gold | Plug to Jack | |||||
Amphenol SV Microwave | 500 | Snap-On Threaded | Stainless Steel | Full Detent | Between Series | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 2.4 mm | Beryllium Copper | Flange | 50 GHz | SMPM Plug Male Pin | SMPM | 2.4 mm | Straight | 50 Ohms | Gold | Plug to Jack | |||||
Amphenol SV Microwave | 500 | Stainless Steel | Between Series | -65 ░C | 165 °C | 2.92 mm | Beryllium Copper | Flange | 40 GHz | Straight | 50 Ohms | Gold | Jack to Jack | 2.4 mm | Female to Female | 2.92 mm | 2.4 mm | OS-2.9 Jack Female Socket | ||||||
Amphenol SV Microwave | 500 | Stainless Steel | Same Series | -65 ░C | 165 °C | 2.4 mm | Beryllium Copper | Flange | 50 GHz | Straight | 50 Ohms | Gold | Jack to Jack | 2.4 mm | Female to Female | 2.4 mm | 2.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 125.64 | |
Description
General part information
1116-60 Series

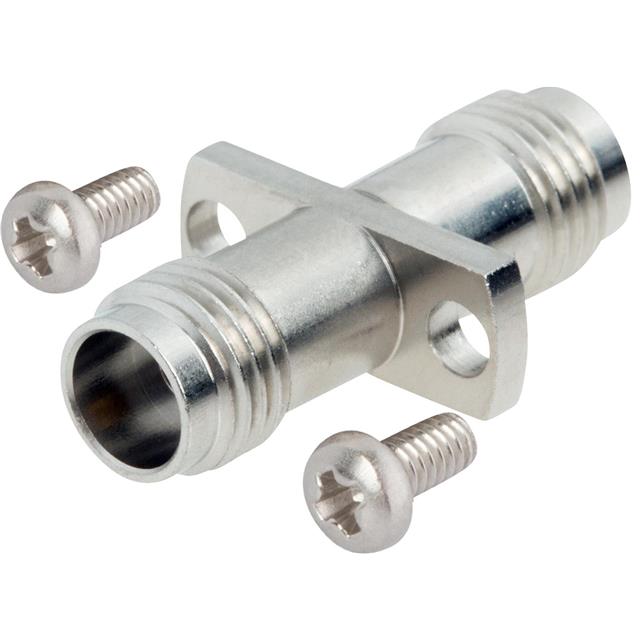

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
