1116-6092

Active

Amphenol SV Microwave

2.92MM FEMALE TO 2.4MM FEMALE FL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1116-6092

Active

Amphenol SV Microwave

2.92MM FEMALE TO 2.4MM FEMALE FL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1116-6092

Adapter Series [Max]	2.92 mm
Adapter Series [Min]	2.4 mm
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	2.4 mm
Convert To (Adapter End)	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

1116-60 Series

Part	Mating Cycles	Fastening Type	Body Material	Features	Conversion Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Center Contact Material	Mounting Feature	Frequency - Max [Max]	Convert From (Adapter End)	Adapter Series	Adapter Series	Style	Impedance	Center Contact Plating	Adapter Type	Convert From (Adapter End)	Center Gender	Adapter Series [Max]	Adapter Series [Min]	Convert To (Adapter End)
Amphenol SV Microwave 1116-6096	500	Snap-On Threaded	Stainless Steel	Smooth Bore	Between Series	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	2.4 mm	Beryllium Copper	Flange	50 GHz	SMPM Plug Male Pin	SMPM	2.4 mm	Straight	50 Ohms	Gold	Plug to Jack
Amphenol SV Microwave 1116-6094	500	Snap-On Threaded	Stainless Steel	Smooth Bore	Between Series	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	2.4 mm	Beryllium Copper	Flange	40 GHz	SMP Plug Male Pin	SMP	2.4 mm	Straight	50 Ohms	Gold	Plug to Jack
Amphenol SV Microwave 1116-6093	500	Snap-On Threaded	Stainless Steel	Full Detent	Between Series	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	2.4 mm	Beryllium Copper	Flange	40 GHz	SMP Plug Male Pin	SMP	2.4 mm	Straight	50 Ohms	Gold	Plug to Jack
Amphenol SV Microwave 1116-6095	500	Snap-On Threaded	Stainless Steel	Full Detent	Between Series	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	2.4 mm	Beryllium Copper	Flange	50 GHz	SMPM Plug Male Pin	SMPM	2.4 mm	Straight	50 Ohms	Gold	Plug to Jack
Amphenol SV Microwave 1116-6092	500		Stainless Steel		Between Series		-65 ░C	165 °C	2.92 mm	Beryllium Copper	Flange	40 GHz				Straight	50 Ohms	Gold	Jack to Jack	2.4 mm	Female to Female	2.92 mm	2.4 mm	OS-2.9 Jack Female Socket
Amphenol SV Microwave 1116-6097	500		Stainless Steel		Same Series		-65 ░C	165 °C	2.4 mm	Beryllium Copper	Flange	50 GHz				Straight	50 Ohms	Gold	Jack to Jack	2.4 mm	Female to Female	2.4 mm	2.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 153.38

Description

General part information

1116-60 Series

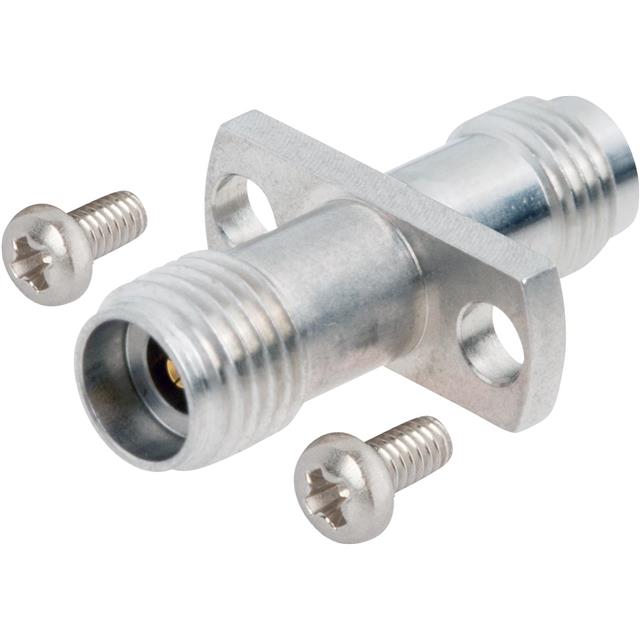

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
