Q-3402C0005002M

Active

Amphenol Custom Cable

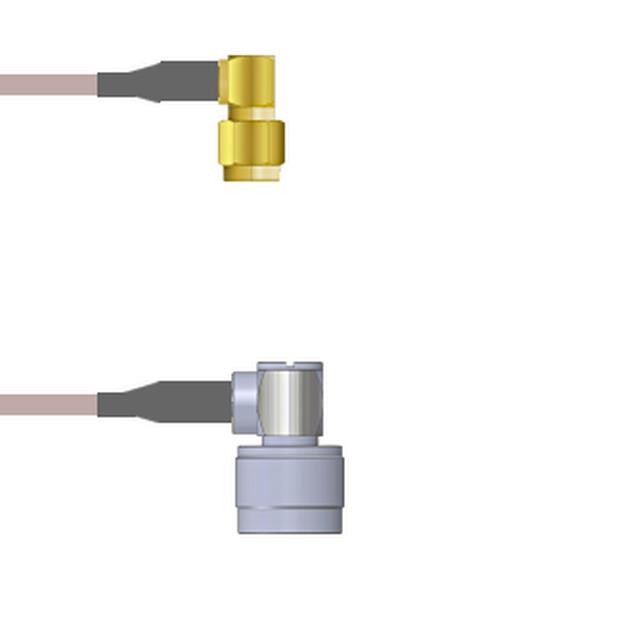

CBL ASSY SMA-NTYPE PLUG-PLG 6.6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-PLG 6.6'

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector Mounting Type	2nd Connector Mounting Type	Connector Impedance	1st Contact Gender	2nd Contact Gender	1st Connector	Cable Impedance	Style	Features	Length	Length	Length	Color	Overall Impedance	2nd Connector	Cable Type	Frequency - Max [Max]
Amphenol Custom Cable Q-3402C0003003M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	Male	Right Angle SMA Plug	50 Ohms	SMA to N-Type	Shielded	3 m	118.1 in	9.8 '	Black	50 Ohms	N-Type Plug Right Angle	RG-174	1 GHz
Amphenol Custom Cable Q-3402C00031.5M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	Male	Right Angle SMA Plug	50 Ohms	SMA to N-Type	Shielded	1.5 m	59.1 in	4.9 ft	Black	50 Ohms	N-Type Plug Right Angle	RG-174	1 GHz
Amphenol Custom Cable Q-3402C0003002M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	Male	Right Angle SMA Plug	50 Ohms	SMA to N-Type	Shielded	2 m	78.7 in	6.6 ft	Black	50 Ohms	N-Type Plug Right Angle	RG-174	1 GHz
Amphenol Custom Cable Q-3402C0003036I	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	Male	Right Angle SMA Plug	50 Ohms	SMA to N-Type	Shielded	91.44 cm	36 in		Black	50 Ohms	N-Type Plug Right Angle	RG-174	1 GHz
Amphenol Custom Cable Q-3402C0005002M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	Male	Right Angle SMA Plug	50 Ohms	SMA to N-Type	Shielded	2 m	78.7 in	6.6 ft	Copper	50 Ohms	N-Type Plug Right Angle	RG-316	3 GHz
Amphenol Custom Cable Q-3402C0005003M	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	Male	Right Angle SMA Plug	50 Ohms	SMA to N-Type	Shielded	3 m	118.1 in	9.8 '	Copper	50 Ohms	N-Type Plug Right Angle	RG-316	3 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-316 78.7" (2.0m) 6.6'

Technical documentation and resources

No documents available
