Q-3402C0003002M
ActiveAmphenol Custom Cable

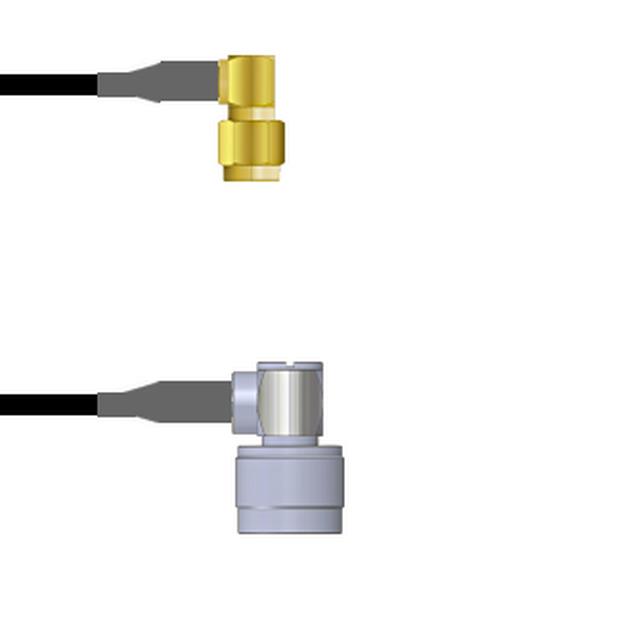

CBL ASSY SMA-NTYPE PLUG-PLG 6.6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-3402C0003002M
ActiveAmphenol Custom Cable
CBL ASSY SMA-NTYPE PLUG-PLG 6.6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3402C0003002M |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 6.6 ft |
| Length | 78.7 in |
| Length | 2 m |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Q-3402C0 Series
| Part | 1st Connector Mounting Type | 2nd Connector Mounting Type | Connector Impedance | 1st Contact Gender | 2nd Contact Gender | 1st Connector | Cable Impedance | Style | Features | Length | Length | Length | Color | Overall Impedance | 2nd Connector | Cable Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | Male | Right Angle SMA Plug | 50 Ohms | SMA to N-Type | Shielded | 3 m | 118.1 in | 9.8 ' | Black | 50 Ohms | N-Type Plug Right Angle | RG-174 | 1 GHz |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | Male | Right Angle SMA Plug | 50 Ohms | SMA to N-Type | Shielded | 1.5 m | 59.1 in | 4.9 ft | Black | 50 Ohms | N-Type Plug Right Angle | RG-174 | 1 GHz |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | Male | Right Angle SMA Plug | 50 Ohms | SMA to N-Type | Shielded | 2 m | 78.7 in | 6.6 ft | Black | 50 Ohms | N-Type Plug Right Angle | RG-174 | 1 GHz |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | Male | Right Angle SMA Plug | 50 Ohms | SMA to N-Type | Shielded | 91.44 cm | 36 in | Black | 50 Ohms | N-Type Plug Right Angle | RG-174 | 1 GHz | |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | Male | Right Angle SMA Plug | 50 Ohms | SMA to N-Type | Shielded | 2 m | 78.7 in | 6.6 ft | Copper | 50 Ohms | N-Type Plug Right Angle | RG-316 | 3 GHz |
Amphenol Custom Cable | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | Male | Right Angle SMA Plug | 50 Ohms | SMA to N-Type | Shielded | 3 m | 118.1 in | 9.8 ' | Copper | 50 Ohms | N-Type Plug Right Angle | RG-316 | 3 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 96.88 | |
| 25 | $ 90.28 | |||
| 50 | $ 83.69 | |||
| 100 | $ 78.04 | |||
| 250 | $ 73.32 | |||
Description
General part information
Q-3402C0 Series
Cable Assembly Coaxial SMA to N-Type RG-174 78.7" (2.0m) 6.6'
