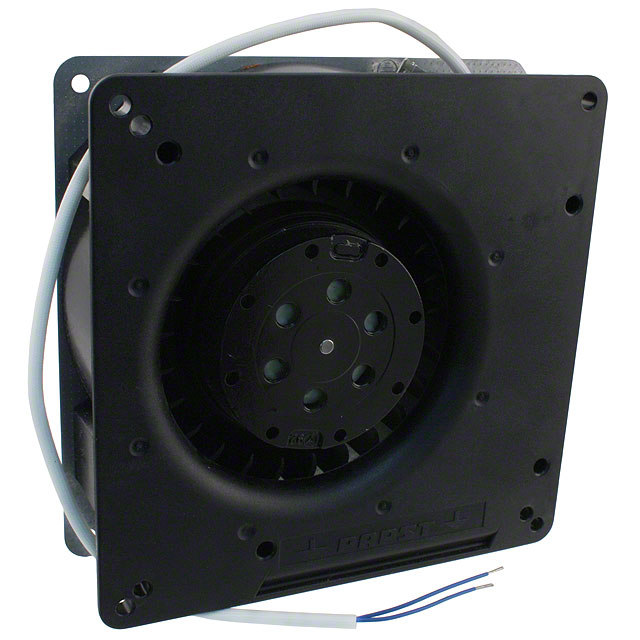

RG90-18/56
ActiveFAN BLOWER, RG 90 SERIES, IP20, RADIAL, 230 VAC, AC, 135 MM, 38 MM, 31.8 CFM
Deep-Dive with AI
Search across all available documentation for this part.
RG90-18/56
ActiveFAN BLOWER, RG 90 SERIES, IP20, RADIAL, 230 VAC, AC, 135 MM, 38 MM, 31.8 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG90-18/56 |
|---|---|
| Air Flow | 31.8 CFM |
| Air Flow | 0.89 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Blower, Flatpak |
| Material - Blade | Plastic, Fiberglass Reinforced |
| Material - Frame | Glass Filled, Plastic |
| Noise | 60 dB(A) |
| Power (Watts) | 22 W |
| Size / Dimension | Square |
| Size / Dimension [x] | 135 mm |
| Size / Dimension [z] | 135 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 589.7 g |
| Weight | 1.3 lbs |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RG90 Series
The RG90-18/56 is a 230VAC Centrifugal Compact Fan with ball bearing and wire leaded power connection. Fibreglass-reinforced plastic impeller. Right direction of rotation looking at rotor, centrifugal, air exhaust out of housing window direction of air flow with via 2 single wires 22AWG, forward-curved impeller. The AC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
