RG90-18/12N

Active

ebm-papst Inc.

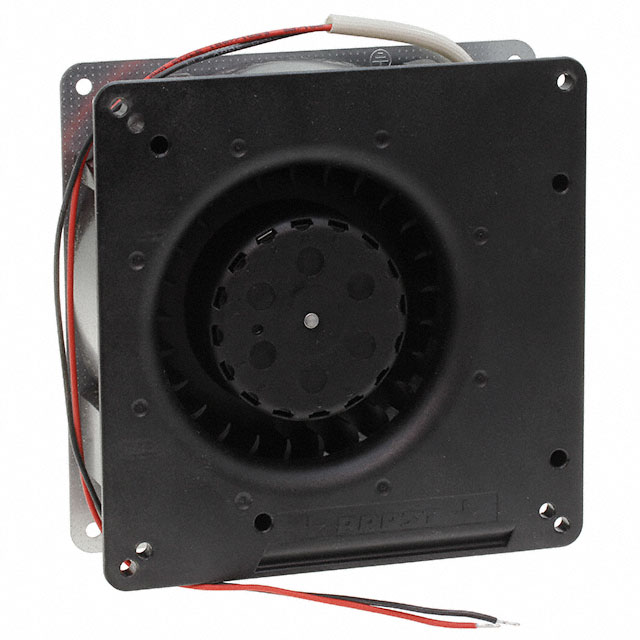

FAN BLOWER CF 135X38MM 12VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CF 135X38MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RG90-18/12N

Air Flow	0.907 mł/min
Air Flow	32.4 CFM
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Material - Blade	Plastic, Fiberglass Reinforced
Material - Frame	Glass Filled, Plastic
Noise	55 dB
Power (Watts)	6 W
Size / Dimension	Square
Size / Dimension [x]	135 mm
Size / Dimension [z]	135 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	7 V
Weight	0.97 lb
Weight	439.98 g
Width [y]	38 mm

Part	Material - Blade	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Noise	Width [y]	Approval Agency	Material - Frame	Termination	Air Flow	Air Flow	Voltage - Rated	Bearing Type	Fan Type	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]
ebm-papst Inc. RG90-18/56	Plastic Fiberglass Reinforced	Square	135 mm	135 mm	589.7 g	1.3 lbs	60 dB(A)	38 mm	CE CSA UL VDE	Glass Filled Plastic	2 Wire Leads	31.8 CFM	0.89 m³/min	230 VAC	Ball	Blower Flatpak	22 W
ebm-papst Inc. RG90-18/12N	Plastic Fiberglass Reinforced	Square	135 mm	135 mm	439.98 g	0.97 lb	55 dB	38 mm		Glass Filled Plastic	2 Wire Leads	32.4 CFM	0.907 mł/min	12 VDC	Ball	Blower Centrifugal	6 W	7 V	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 12VDC Square - 135mm L x 135mm H Ball 32.4 CFM (0.907m³/min) 2 Wire Leads
