09170249622

Active

HARTING Technology Group

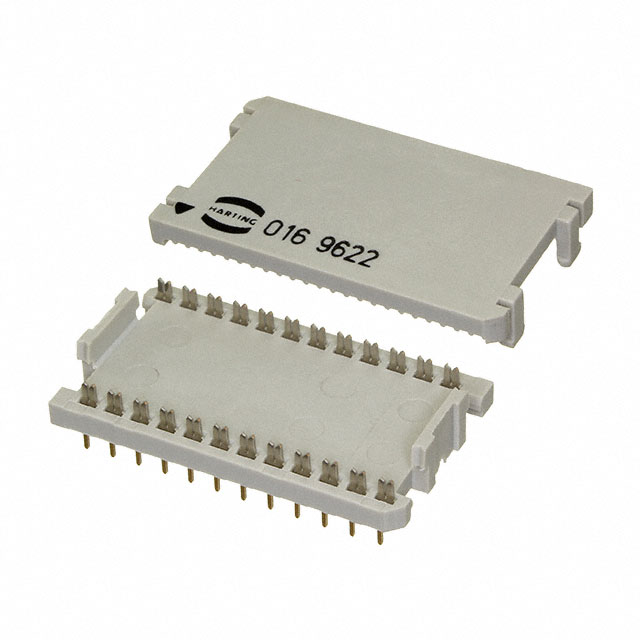

HEADER CONNECTOR,PCB MOUNT,PLUG,24 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09170249622

Active

HARTING Technology Group

HEADER CONNECTOR,PCB MOUNT,PLUG,24 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09170249622

Board-Side Pitch	0.1 in
Board-Side Pitch	2.54 mm
Cable Termination	IDC
Color	Beige
Connector Type	Ribbon Cable, DIP Header
Contact Finish	Tin
Features	Feed Through
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	0.6 in
Row Spacing	15.24 mm

sek Series

Part	Wire Type	Connector Type	Row Spacing [x]	Row Spacing	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Cable Termination	Contact Finish	Features	Number of Positions	Number of Positions Loaded	Row Spacing	Board-Side Pitch	Board-Side Pitch	Color	Number of Positions
HARTING Technology Group 0918520581358U	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key Strain Relief	20
HARTING Technology Group 09185105803	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key	10
HARTING Technology Group 09170249622		DIP Header Ribbon Cable		15.24 mm	Through Hole						2	IDC	Tin	Feed Through	24	All	0.6 in	0.1 in	2.54 mm	Beige
HARTING Technology Group 0918506681358U	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key Strain Relief	6
HARTING Technology Group 09185647813	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key Strain Relief	64
HARTING Technology Group 09185266814	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Closed End Polarizing Key Strain Relief	26
HARTING Technology Group 09185406814	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Closed End Polarizing Key Strain Relief	40
HARTING Technology Group 09185065813	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key Strain Relief	6
HARTING Technology Group 09185166804	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold								16
HARTING Technology Group 09185646814	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Closed End Polarizing Key Strain Relief	64
