09185406814

Active

HARTING Technology Group

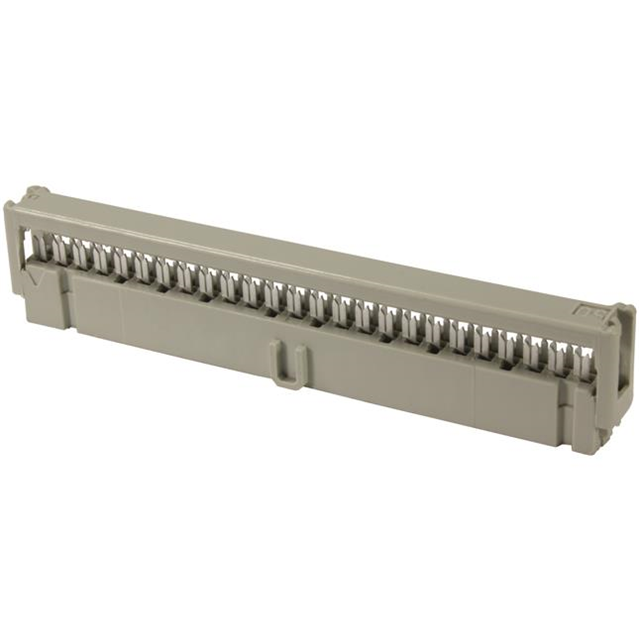

CONNECTOR: IDC; FEMALE; PIN: 40; SEK; IDC; 2.54MM; TYPE: CLOSED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09185406814

Active

HARTING Technology Group

CONNECTOR: IDC; FEMALE; PIN: 40; SEK; IDC; 2.54MM; TYPE: CLOSED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09185406814

Cable Termination	IDC
Connector Type	Receptacle
Contact Finish	Gold
Contact Type	Female Socket
Features	Closed End, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	40
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

sek Series

Part	Wire Type	Connector Type	Row Spacing [x]	Row Spacing	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Cable Termination	Contact Finish	Features	Number of Positions	Number of Positions Loaded	Row Spacing	Board-Side Pitch	Board-Side Pitch	Color	Number of Positions
HARTING Technology Group 0918520581358U	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key Strain Relief	20
HARTING Technology Group 09185105803	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key	10
HARTING Technology Group 09170249622		DIP Header Ribbon Cable		15.24 mm	Through Hole						2	IDC	Tin	Feed Through	24	All	0.6 in	0.1 in	2.54 mm	Beige
HARTING Technology Group 0918506681358U	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key Strain Relief	6
HARTING Technology Group 09185647813	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key Strain Relief	64
HARTING Technology Group 09185266814	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Closed End Polarizing Key Strain Relief	26
HARTING Technology Group 09185406814	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Closed End Polarizing Key Strain Relief	40
HARTING Technology Group 09185065813	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	IDC	Gold	Feed Through Polarizing Key Strain Relief	6
HARTING Technology Group 09185166804	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold								16
HARTING Technology Group 09185646814	Ribbon Cable	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket			2.54 mm	0.1 in	2	IDC	Gold	Closed End Polarizing Key Strain Relief	64

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.15
Newark	Each	100	$ 3.26
		250	$ 2.86
		500	$ 2.78
		1000	$ 2.36
TME	N/A	100	$ 2.66

Description

General part information

sek Series

40 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
