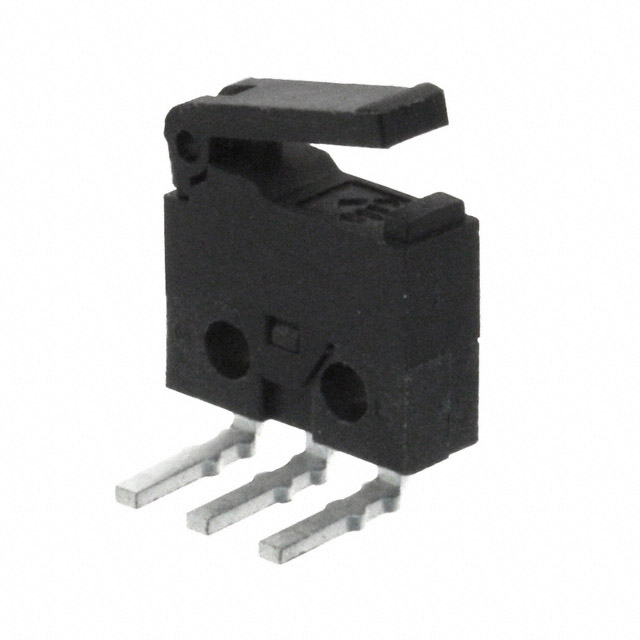

TS0101F020V3
ActiveE-Switch
MICROSWITCH SNAP ACTION; 0.3A/6VDC; WITH LEVER; SPDT; POS: 2; TS
Deep-Dive with AI
Search across all available documentation for this part.
TS0101F020V3
ActiveE-Switch
MICROSWITCH SNAP ACTION; 0.3A/6VDC; WITH LEVER; SPDT; POS: 2; TS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TS0101F020V3 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 300 mA |
| Electrical Life | 50000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 20 gf |
| Operating Position [custom] | 6.7 mm |
| Operating Position [custom] | 0.264 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pretravel | 0.071 in |
| Pretravel | 1.8 mm |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - DC | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.99 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.64 | |||
| 5000 | $ 0.58 | |||
Description
General part information
TS0101 Series
Switch SPDT Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
