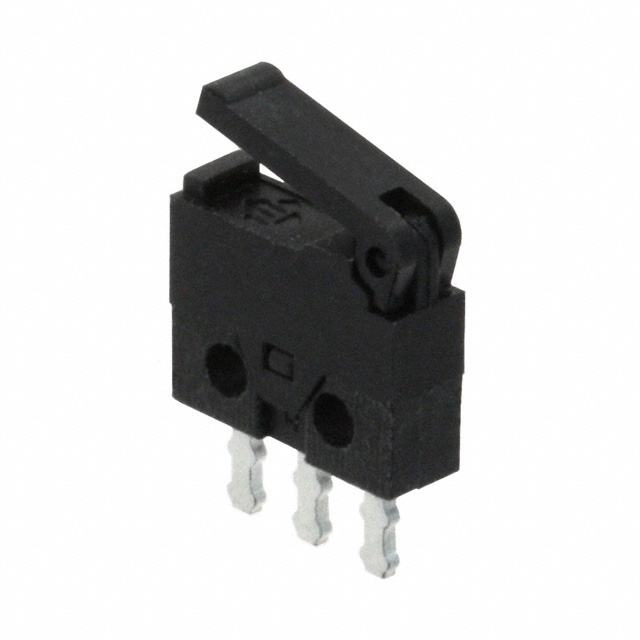

TS0101F020P

Active

E-Switch

SWITCH SNAP ACTION SPDT 0.3A 6V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 0.3A 6V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Position [custom]	Operating Position [custom]	Voltage Rating - DC	Actuator Type	Electrical Life	Pretravel	Pretravel	Circuit	Termination Style	Switch Function	Mechanical Life	Mounting Type	Current Rating (Amps)	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]
E-Switch TS0101F020P	6.7 mm	0.264 "	6 V	Lever Straight	50000 Cycles	0.071 in	1.8 mm	SPDT	PC Pin	On-Mom	100000 Cycles	Through Hole	300 mA	20 gf	-25 °C	85 °C
E-Switch TS0101F020V3	6.7 mm	0.264 "	6 V	Lever Straight	50000 Cycles	0.071 in	1.8 mm	SPDT	PC Pin	On-Mom	100000 Cycles	Through Hole Right Angle	300 mA	20 gf	-25 °C	85 °C
E-Switch TS0101F020V4	6.7 mm	0.264 "	6 V	Lever Straight	50000 Cycles	0.071 in	1.8 mm	SPDT	PC Pin	On-Mom	100000 Cycles	Through Hole Right Angle	300 mA	20 gf	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Through Hole
