PPCEGG1K14CLL

Active

BULGIN LIMITED

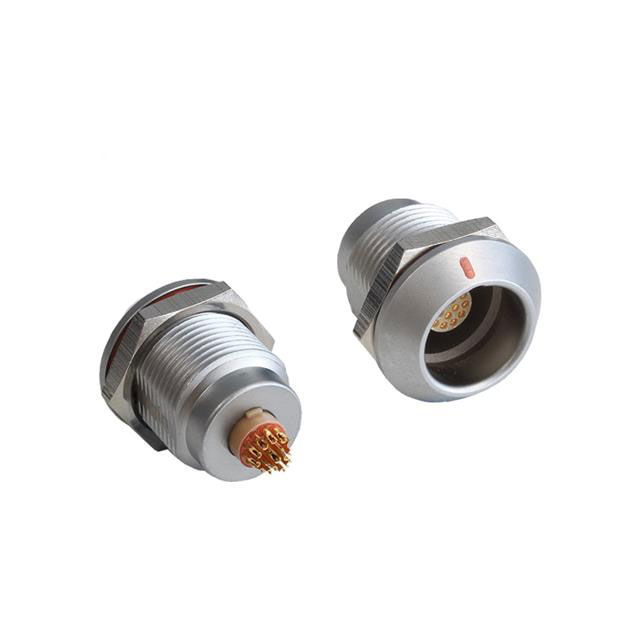

CIRCULAR CONNECTOR, PUSH PULL Y SERIES, PANEL MOUNT RECEPTACLE, 14 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PPCEGG1K14CLL

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, PUSH PULL Y SERIES, PANEL MOUNT RECEPTACLE, 14 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPCEGG1K14CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Ingress Protection	IP66
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	14
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-50 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Shielded

PPCEGG Series

Part	Shell Material	Contact Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Shell Finish	Ingress Protection	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Orientation	Current Rating (Amps)	Connector Type	Shielding	Insert Material	Mounting Feature
BULGIN LIMITED PPCEGG3B22CLL	Brass	Phosphor Bronze	Metal	-50 °C	200 °C	Push-Pull	22 positions	Chrome	IP50	Gold	3 µin	0.076 µm	Silver	G	5.5 Amps	Receptacle Female Sockets	Shielded	Polyphenylene Sulfide (PPS)
BULGIN LIMITED PPCEGG3K12CLL	Brass	Phosphor Bronze	Metal	-50 °C	200 °C	Push-Pull	12	Chrome	IP66	Gold	3 µin	0.076 µm	Silver	G	9 A	Receptacle Female Sockets	Shielded	Polyphenylene Sulfide (PPS)	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG1B08CLL	Brass	Phosphor Bronze	Metal	-50 °C	200 °C	Push-Pull	8	Chrome	IP50	Gold	3 µin	0.076 µm	Silver	G	5 A	Receptacle Female Sockets	Shielded	Polyphenylene Sulfide (PPS)	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG1K07CLL	Brass	Phosphor Bronze	Metal	-50 °C	200 °C	Push-Pull	7	Chrome	IP66	Gold	3 µin	0.076 µm	Silver	G	7 A	Receptacle Female Sockets	Shielded	Polyphenylene Sulfide (PPS)	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG2B07CLL	Brass	Phosphor Bronze	Metal	-50 °C	200 °C	Push-Pull	7	Chrome	IP50	Gold	3 µin	0.076 µm	Silver	G	11 A	Receptacle Female Sockets	Shielded	Polyphenylene Sulfide (PPS)	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG1K14CLL	Brass	Phosphor Bronze	Metal	-50 °C	200 °C	Push-Pull	14	Chrome	IP66	Gold	3 µin	0.076 µm	Silver	G	2 A	Receptacle Female Sockets	Shielded	Polyphenylene Sulfide (PPS)	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG2B08CLL	Brass	Phosphor Bronze	Metal	-50 °C	200 °C	Push-Pull	8	Chrome	IP50	Gold	3 µin	0.076 µm	Silver	G	10 A	Receptacle Female Sockets	Shielded	Polyphenylene Sulfide (PPS)	Bulkhead - Rear Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 45.01

Description

General part information

PPCEGG Series

14 Position Circular Connector Receptacle, Female Sockets Solder Cup
