PPCEGG3K12CLL
ActiveBULGIN LIMITED

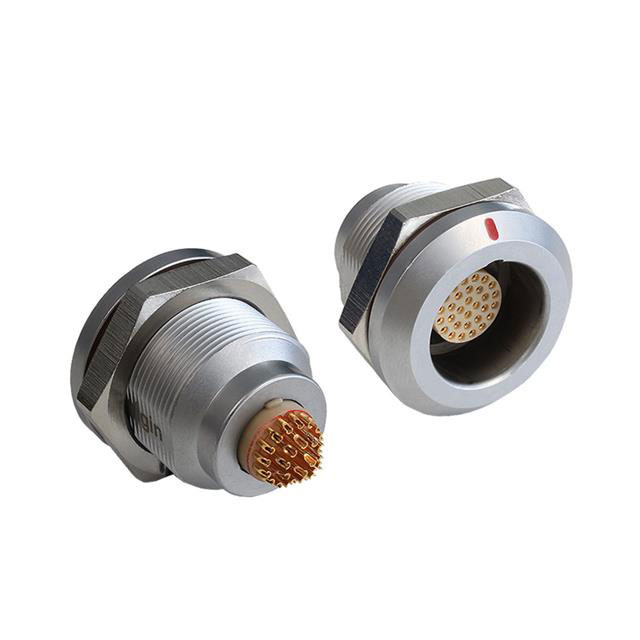

CIRCULAR CONNECTOR, PUSH PULL Y SERIES, PANEL MOUNT RECEPTACLE, 12 CONTACTS, SOLDER SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
PPCEGG3K12CLL
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, PUSH PULL Y SERIES, PANEL MOUNT RECEPTACLE, 12 CONTACTS, SOLDER SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PPCEGG3K12CLL |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 9 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP66 |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 12 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shielding | Shielded |
PPCEGG Series
| Part | Shell Material | Contact Material | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions | Shell Finish | Ingress Protection | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Orientation | Current Rating (Amps) | Connector Type | Shielding | Insert Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Brass | Phosphor Bronze | Metal | -50 °C | 200 °C | Push-Pull | 22 positions | Chrome | IP50 | Gold | 3 µin | 0.076 µm | Silver | G | 5.5 Amps | Receptacle Female Sockets | Shielded | Polyphenylene Sulfide (PPS) | |
BULGIN LIMITED | Brass | Phosphor Bronze | Metal | -50 °C | 200 °C | Push-Pull | 12 | Chrome | IP66 | Gold | 3 µin | 0.076 µm | Silver | G | 9 A | Receptacle Female Sockets | Shielded | Polyphenylene Sulfide (PPS) | Bulkhead - Rear Side Nut |
BULGIN LIMITED | Brass | Phosphor Bronze | Metal | -50 °C | 200 °C | Push-Pull | 8 | Chrome | IP50 | Gold | 3 µin | 0.076 µm | Silver | G | 5 A | Receptacle Female Sockets | Shielded | Polyphenylene Sulfide (PPS) | Bulkhead - Rear Side Nut |
BULGIN LIMITED | Brass | Phosphor Bronze | Metal | -50 °C | 200 °C | Push-Pull | 7 | Chrome | IP66 | Gold | 3 µin | 0.076 µm | Silver | G | 7 A | Receptacle Female Sockets | Shielded | Polyphenylene Sulfide (PPS) | Bulkhead - Rear Side Nut |
BULGIN LIMITED | Brass | Phosphor Bronze | Metal | -50 °C | 200 °C | Push-Pull | 7 | Chrome | IP50 | Gold | 3 µin | 0.076 µm | Silver | G | 11 A | Receptacle Female Sockets | Shielded | Polyphenylene Sulfide (PPS) | Bulkhead - Rear Side Nut |
BULGIN LIMITED | Brass | Phosphor Bronze | Metal | -50 °C | 200 °C | Push-Pull | 14 | Chrome | IP66 | Gold | 3 µin | 0.076 µm | Silver | G | 2 A | Receptacle Female Sockets | Shielded | Polyphenylene Sulfide (PPS) | Bulkhead - Rear Side Nut |
BULGIN LIMITED | Brass | Phosphor Bronze | Metal | -50 °C | 200 °C | Push-Pull | 8 | Chrome | IP50 | Gold | 3 µin | 0.076 µm | Silver | G | 10 A | Receptacle Female Sockets | Shielded | Polyphenylene Sulfide (PPS) | Bulkhead - Rear Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 65.21 | |
Description
General part information
PPCEGG Series
12 Position Circular Connector Receptacle, Female Sockets Solder Cup
