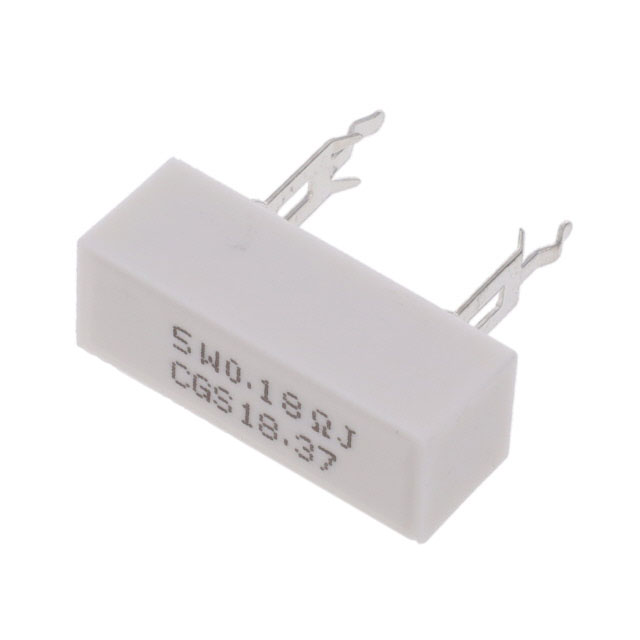

SQZW5R18J
ActiveTE Connectivity Passive Product
RES 0.18 OHM 5% 5W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SQZW5R18J
ActiveTE Connectivity Passive Product
RES 0.18 OHM 5% 5W RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SQZW5R18J |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 11 mm |
| Height - Seated (Max) [Max] [z] | 0.433 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 5 W |
| Resistance | 0.18 Ohms |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [x] | 1.102 in |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.37 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.31 | |||
| 5000 | $ 0.28 | |||
Description
General part information
SQZW5 Series
180 mOhms ±5% 5W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Wirewound
