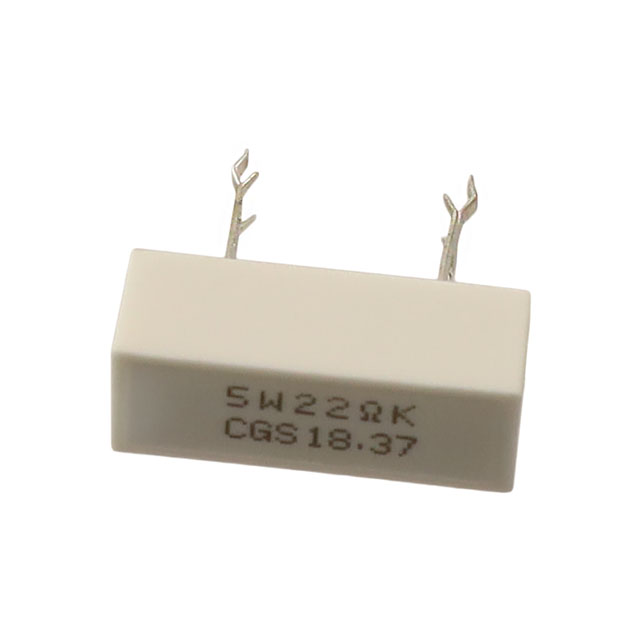

SQZW522RK

Active

TE Connectivity Passive Product

RES 22 OHM 10% 5W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 22 OHM 10% 5W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SQZW522RK

Composition	Wirewound
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	5 W
Resistance	22 Ohms
Size / Dimension [x]	28 mm
Size / Dimension [x]	1.102 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Temperature Coefficient	300 ppm/°C
Tolerance	10 %

Part	Tolerance	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Package / Case	Number of Terminations	Composition
TE Connectivity Passive Product SQZW522RK	10 %	5 W	Flame Proof Moisture Resistant Safety	28 mm	10 mm	1.102 in	0.394 in	300 ppm/°C	-55 °C	250 °C	11 mm	0.433 in	22 Ohms	Radial	2	Wirewound
TE Connectivity Passive Product SQZW5R18J	5 %	5 W	Flame Proof Moisture Resistant Safety	28 mm	10 mm	1.102 in	0.394 in	300 ppm/°C	-55 °C	250 °C	11 mm	0.433 in	0.18 Ohms	Radial	2	Wirewound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Ohms ±10% 5W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Wirewound
