DX07B024XJ1R1300
ActiveJAE Electronics

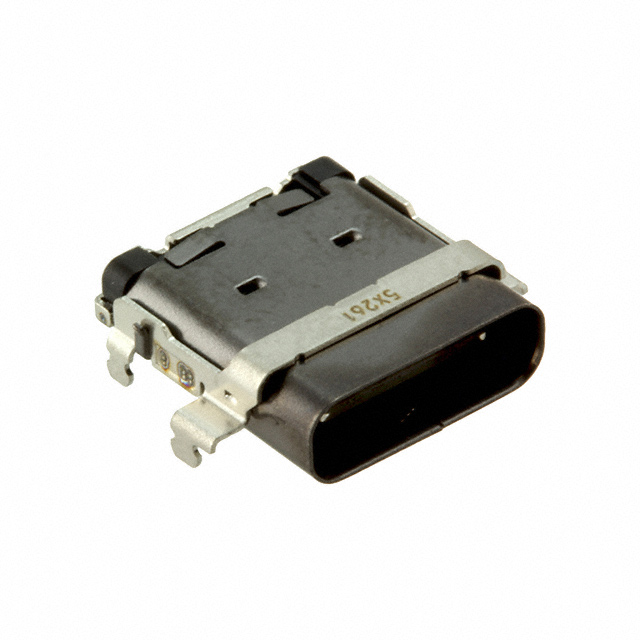

CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DX07B024XJ1R1300
ActiveJAE Electronics
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DX07B024XJ1R1300 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A |
| Features | Pick and Place |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Voltage - Rated | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.58 | |
| 10 | $ 2.73 | |||
| 25 | $ 2.46 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.91 | |||
| 500 | $ 1.78 | |||
| Digi-Reel® | 1 | $ 3.58 | ||
| 10 | $ 2.73 | |||
| 25 | $ 2.46 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.91 | |||
| 500 | $ 1.78 | |||
| Tape & Reel (TR) | 1300 | $ 1.62 | ||
| 2600 | $ 1.51 | |||
| 3900 | $ 1.46 | |||
| 6500 | $ 1.42 | |||
Description
General part information
DX07B024 Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
