DX07B024JJ3R1600
ActiveJAE Electronics

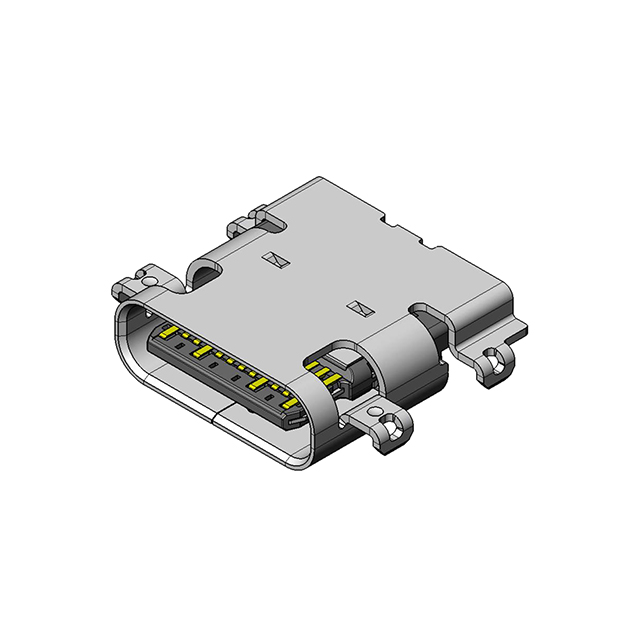

CONN RCP USB3.1 TYPEC 24P SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DX07B024JJ3R1600
ActiveJAE Electronics
CONN RCP USB3.1 TYPEC 24P SMD RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DX07B024JJ3R1600 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Right Angle, Through Hole, Surface Mount, Board Cutout |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Voltage - Rated | 48 V |
