STX-3100-3N

Active

Kycon, Inc.

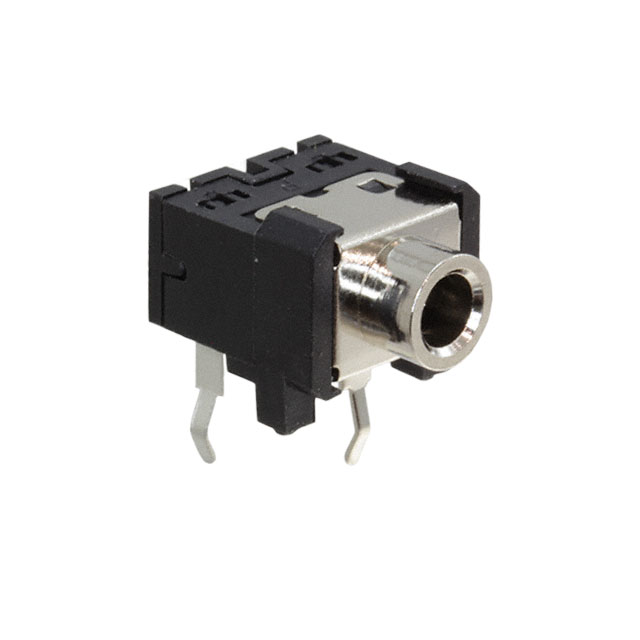

CONN JACK STEREO 3.5MM PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet G3LX-188S1-FF-GY1

STX-3100-3N

Active

Kycon, Inc.

CONN JACK STEREO 3.5MM PCB R/A

Deep-Dive with AI

DocumentsDatasheet G3LX-188S1-FF-GY1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STX-3100-3N

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Silver, Black
Body Material	Brass
Connector Type	Phone Jack
Contact Material	Brass, Phosphor Bronze
Contact Material - Plating [custom]	Tin, Nickel
Features	Board Guide
Gender	Female
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Kinked Pin

STX Series

Part	Current Rating (Amps)	Body Color	Contact Material	Internal Switch(s)	Voltage - Rated	Connector Type	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Signal Lines	Mounting Type	Features	Actual Diameter [diameter]	Actual Diameter [diameter]	Gender	Termination	Housing Material	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Operating Temperature [custom]	Body Material	Contact Material - Plating
Kycon, Inc. STX-3500-4N-577CTR	300 mA	Green	Copper Alloy	Single Switch	16 V	Phone Jack	0.141 "	0.125 "	3.5 mm	Stereo	Surface Mount Right Angle	Board Guide	0.142 in	3.6 mm	Female	Solder	Thermoplastic	Unshielded	3	4	-25 °C	85 °C	Silver
Kycon, Inc. STX-3200-5NB		Black Silver	Copper Alloy Phosphor Bronze	Two Switches		Phone Jack	0.141 "	0.125 "	3.5 mm	Stereo	Through Hole Right Angle	Board Guide	0.142 in	3.6 mm	Female	Kinked Pin	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	3	5				Nickel Tin	-25 °C 100 °C
Kycon, Inc. STX-35332-5N-TR	300 mA	Black	Copper Alloy		16 V	Phone Jack	0.141 "	0.125 "	3.5 mm	Stereo	Surface Mount Right Angle	Board Guide	0.142 in	3.6 mm	Female	Solder Solder Eyelet	Plastic	Unshielded	3	3	-25 °C	70 °C	Gold
Kycon, Inc. STX-3100-3N		Black Silver	Brass Phosphor Bronze			Phone Jack	0.141 "	0.125 "	3.5 mm	Stereo	Through Hole Right Angle	Board Guide	0.142 in	3.6 mm	Female	Kinked Pin	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	3	3	-25 °C	80 C		Nickel Tin		Brass
Kycon, Inc. STX-3150-5N-577C	300 mA	Lime	Phosphor Bronze	Two Switches	16 V	Phone Jack	0.141 "	0.125 "	3.5 mm	Stereo	Through Hole Right Angle		0.142 in	3.6 mm	Female	Solder	Polybutylene Terephthalate (PBT)	Unshielded	3	5	-25 °C	80 C				Brass	Tin
Kycon, Inc. STX-3120-5B-157C		Orange	Brass Phosphor Bronze	Two Switches		Phone Jack	0.141 "	0.125 "	3.5 mm	Stereo	Through Hole Right Angle	Board Guide	0.142 in	3.6 mm	Female	Kinked Pin	Thermoplastic Glass Filled	Unshielded	3	5	-25 °C	85 °C					Tin
Kycon, Inc. STX-35398E-5N-TR		Black	Copper Alloy	Single Switch		Phone Jack	0.141 "	0.125 "	3.5 mm	Stereo	Board Cutout Right Angle Surface Mount		0.142 in	3.6 mm	Female	Solder	Plastic	Unshielded	3	5	-25 °C	85 °C	Gold
Kycon, Inc. STX-3500-3NTR	300 mA	Black	Copper Alloy		16 V	Phone Jack	0.141 "	0.125 "	3.5 mm	Stereo	Surface Mount Right Angle	Board Guide	0.142 in	3.6 mm	Female	Solder	Polyamide (PA) Nylon	Unshielded	3	3	-25 °C	85 °C	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.48
		10	$ 1.25
		25	$ 1.18
		50	$ 1.12
		100	$ 1.07
		250	$ 1.00
		500	$ 0.95
		1000	$ 0.91
		2500	$ 0.85

Description

General part information

STX Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
