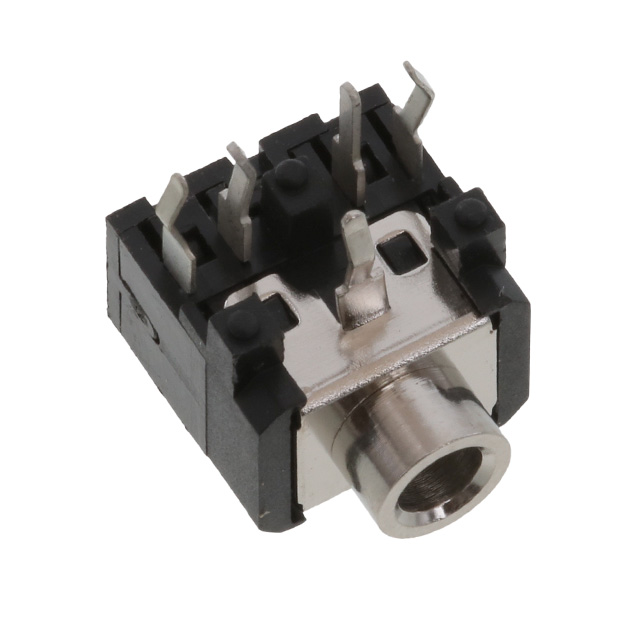

STX-3200-5NB
ActiveKycon, Inc.
STEREO JACK NO THREAD SHIELD 5P,
Deep-Dive with AI
Search across all available documentation for this part.
STX-3200-5NB
ActiveKycon, Inc.
STEREO JACK NO THREAD SHIELD 5P,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STX-3200-5NB |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Silver, Black |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy, Phosphor Bronze |
| Contact Material - Plating [custom] | Tin, Nickel |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | Two Switches |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 5 |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Kinked Pin |
STX Series
| Part | Current Rating (Amps) | Body Color | Contact Material | Internal Switch(s) | Voltage - Rated | Connector Type | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Signal Lines | Mounting Type | Features | Actual Diameter [diameter] | Actual Diameter [diameter] | Gender | Termination | Housing Material | Shielding | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating [custom] | Contact Material - Plating [custom] | Operating Temperature [custom] | Internal Switch(s) | Body Material | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kycon, Inc. | 300 mA | Green | Copper Alloy | Single Switch | 16 V | Phone Jack | 0.141 " | 0.125 " | 3.5 mm | Stereo | Surface Mount Right Angle | Board Guide | 0.142 in | 3.6 mm | Female | Solder | Thermoplastic | Unshielded | 3 | 4 | -25 °C | 85 °C | Silver | |||||
Kycon, Inc. | Black Silver | Copper Alloy Phosphor Bronze | Two Switches | Phone Jack | 0.141 " | 0.125 " | 3.5 mm | Stereo | Through Hole Right Angle | Board Guide | 0.142 in | 3.6 mm | Female | Kinked Pin | Polybutylene Terephthalate (PBT) Glass Filled | Unshielded | 3 | 5 | Nickel Tin | -25 °C 100 °C | ||||||||
Kycon, Inc. | 300 mA | Black | Copper Alloy | 16 V | Phone Jack | 0.141 " | 0.125 " | 3.5 mm | Stereo | Surface Mount Right Angle | Board Guide | 0.142 in | 3.6 mm | Female | Solder Solder Eyelet | Plastic | Unshielded | 3 | 3 | -25 °C | 70 °C | Gold | ||||||
Kycon, Inc. | Black Silver | Brass Phosphor Bronze | Phone Jack | 0.141 " | 0.125 " | 3.5 mm | Stereo | Through Hole Right Angle | Board Guide | 0.142 in | 3.6 mm | Female | Kinked Pin | Polybutylene Terephthalate (PBT) Glass Filled | Unshielded | 3 | 3 | -25 °C | 80 C | Nickel Tin | Brass | |||||||
Kycon, Inc. | 300 mA | Lime | Phosphor Bronze | Two Switches | 16 V | Phone Jack | 0.141 " | 0.125 " | 3.5 mm | Stereo | Through Hole Right Angle | 0.142 in | 3.6 mm | Female | Solder | Polybutylene Terephthalate (PBT) | Unshielded | 3 | 5 | -25 °C | 80 C | Brass | Tin | |||||
Kycon, Inc. | Orange | Brass Phosphor Bronze | Two Switches | Phone Jack | 0.141 " | 0.125 " | 3.5 mm | Stereo | Through Hole Right Angle | Board Guide | 0.142 in | 3.6 mm | Female | Kinked Pin | Thermoplastic Glass Filled | Unshielded | 3 | 5 | -25 °C | 85 °C | Tin | |||||||
Kycon, Inc. | Black | Copper Alloy | Single Switch | Phone Jack | 0.141 " | 0.125 " | 3.5 mm | Stereo | Board Cutout Right Angle Surface Mount | 0.142 in | 3.6 mm | Female | Solder | Plastic | Unshielded | 3 | 5 | -25 °C | 85 °C | Gold | ||||||||
Kycon, Inc. | 300 mA | Black | Copper Alloy | 16 V | Phone Jack | 0.141 " | 0.125 " | 3.5 mm | Stereo | Surface Mount Right Angle | Board Guide | 0.142 in | 3.6 mm | Female | Solder | Polyamide (PA) Nylon | Unshielded | 3 | 3 | -25 °C | 85 °C | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.31 | |
| 10 | $ 1.11 | |||
| 25 | $ 1.04 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.88 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.80 | |||
| 2500 | $ 0.75 | |||
Description
General part information
STX Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
