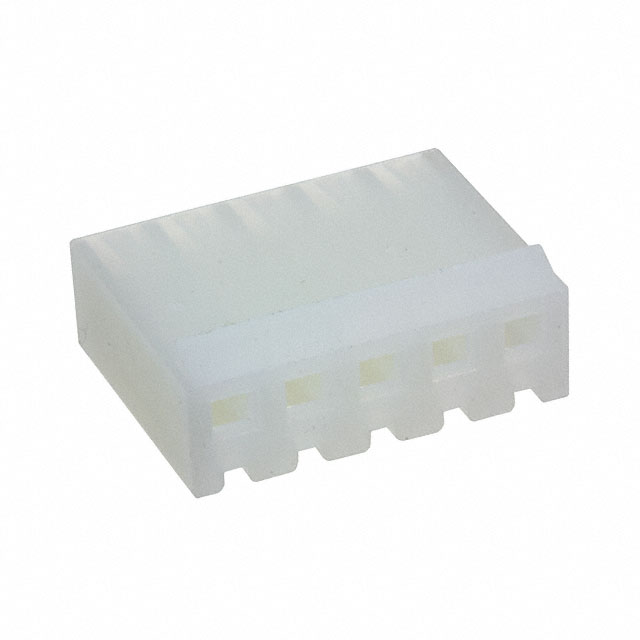

MTB-05

Active

Adam Tech

CONN WIRE TO BOARD F 5 POS

Search across all available documentation for this part.

Active

Adam Tech

CONN WIRE TO BOARD F 5 POS

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Note	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Number of Positions	Fastening Type	Insulation Material	Connector Type	Number of Rows	Color	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket
Adam Tech MTB-10	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp	10	Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-09	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp	9	Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-04	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp	4	Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-05	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp		Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-06	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp	6	Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-C-R								Crimp							Tin	26 AWG	17.5 AWG	Non-Gendered

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle White 0.156" (3.96mm)
