MTB-04

Active

Adam Tech

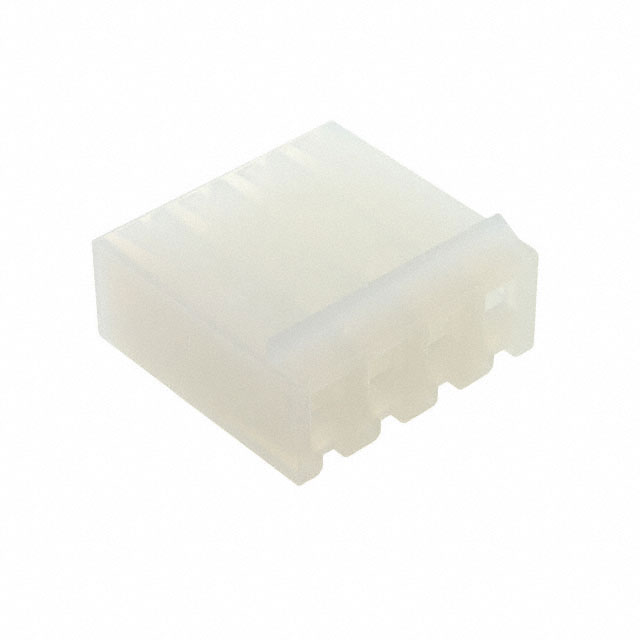

CONN RCPT HSG 4POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 4POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Note	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Number of Positions	Fastening Type	Insulation Material	Connector Type	Number of Rows	Color	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket
Adam Tech MTB-10	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp	10	Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-09	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp	9	Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-04	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp	4	Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-05	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp		Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-06	Female Socket	Contacts Not Included	0.156 in	3.96 mm	-25 °C	85 °C	Free Hanging (In-Line)	Crimp	6	Locking Ramp	Polyamide (PA66) Nylon 6/6	Receptacle	1	White
Adam Tech MTB-C-R								Crimp							Tin	26 AWG	17.5 AWG	Non-Gendered

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle White 0.156" (3.96mm)
