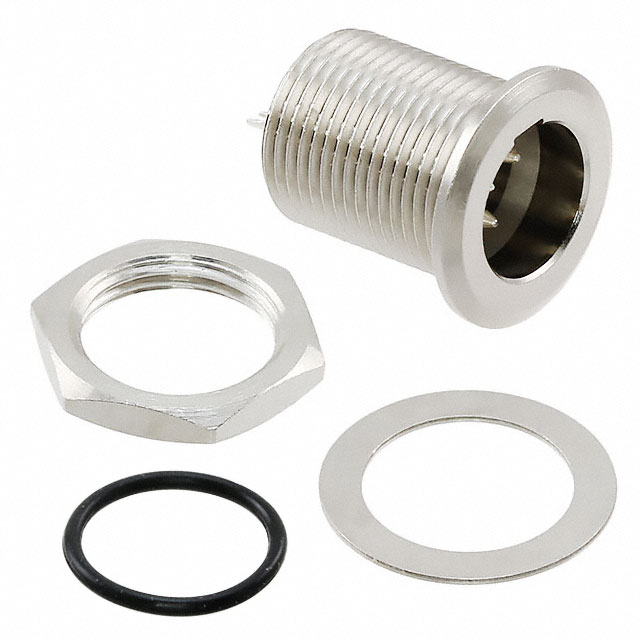

TB4MS

Active

Switchcraft Inc.

CONN RCPT ML MINI XLR 4P SDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT ML MINI XLR 4P SDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Contact Finish - Mating	Shell Finish	Applications	Color	Fastening Type	Shell Material	Mounting Feature	Shell Size - Insert	Current Rating (Amps)	Number of Positions	Features	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Voltage Rating	Insert Material	Contact Material	Primary Material	Ingress Protection
Switchcraft Inc. TB4MB	Male Pins Receptacle	Silver	Chrome	Audio	Black	Latch Lock	Copper Alloy	Bulkhead - Rear Side Nut	Mini XLR	5 A	4	Ground	UL94 V-0	85 °C	-55 °C	Keyed	125 VAC	Thermoplastic	Copper Alloy	Metal
Switchcraft Inc. TB4MS	Male Pins Receptacle	Silver	Nickel	Audio Medical	Silver	Latch Lock	Copper Alloy	Bulkhead - Rear Side Nut	Mini XLR	5 A	4					Keyed	125 VAC	Thermoplastic	Copper Alloy	Metal	IP65 IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.32

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
