TB4MB

Active

Switchcraft Inc.

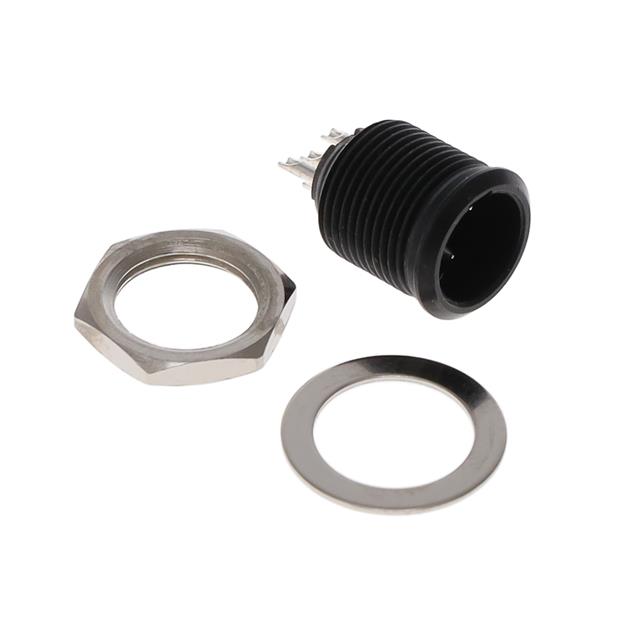

CONN MINI XLR CONNECTOR M 4 POS SOLDER CUP ST PANEL MOUNT 4 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN MINI XLR CONNECTOR M 4 POS SOLDER CUP ST PANEL MOUNT 4 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	TB4MB

Applications	Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Ground
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Voltage Rating	125 VAC

Part	Connector Type	Contact Finish - Mating	Shell Finish	Applications	Color	Fastening Type	Shell Material	Mounting Feature	Shell Size - Insert	Current Rating (Amps)	Number of Positions	Features	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Voltage Rating	Insert Material	Contact Material	Primary Material	Ingress Protection
Switchcraft Inc. TB4MB	Male Pins Receptacle	Silver	Chrome	Audio	Black	Latch Lock	Copper Alloy	Bulkhead - Rear Side Nut	Mini XLR	5 A	4	Ground	UL94 V-0	85 °C	-55 °C	Keyed	125 VAC	Thermoplastic	Copper Alloy	Metal
Switchcraft Inc. TB4MS	Male Pins Receptacle	Silver	Nickel	Audio Medical	Silver	Latch Lock	Copper Alloy	Bulkhead - Rear Side Nut	Mini XLR	5 A	4					Keyed	125 VAC	Thermoplastic	Copper Alloy	Metal	IP65 IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
