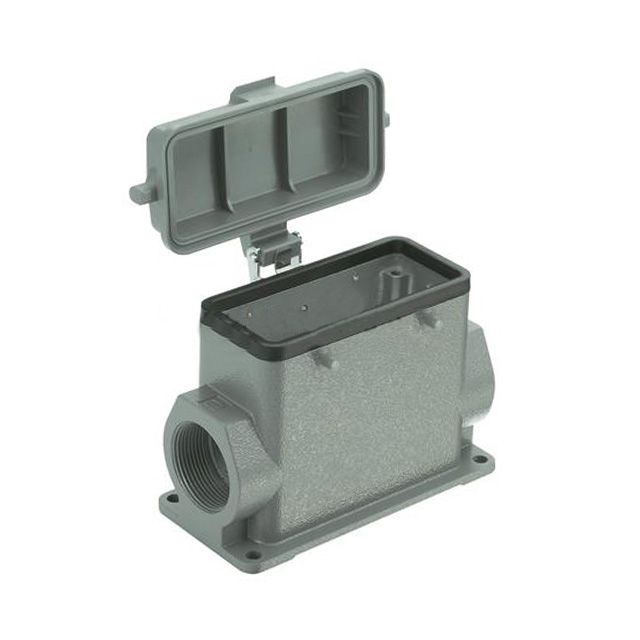

HEAVY DUTY CONNECTOR, M32, BASE, PANEL MOUNT, ALUMINUM BODY, 2 LEVER, 16B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19300160267 Prod Declaration Cert +1

19300160267

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M32, BASE, PANEL MOUNT, ALUMINUM BODY, 2 LEVER, 16B

Deep-Dive with AI

DocumentsDatasheet 19300160267 Prod Declaration Cert +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300160267

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	4.606 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.181 "
Size / Dimension [z]	80.8 mm
Style	Side Entry
Thread Size	M32

19300160 Series

Part	Housing Finish	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Lock Location	Housing Color	Housing Material	Connector Type	Thread Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features
HARTING Technology Group 19300160446	Powder Coated	16 B	IP65 IP66 IP67	125 °C	-40 °C	Top Entry	Locking Clip (1) on Base Bottom	Gray	Aluminum Die Cast	Hood	M25
HARTING Technology Group 19300160252	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (1) on Base Bottom	Gray	Aluminum Die Cast	Base - Box Mount	M32	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm
HARTING Technology Group 19300160466	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Dual Top Entry	Locking Clip (2) on Base Bottom	Gray	Aluminum Die Cast	Hood	M25	1.693 in	3.681 "	2.992 in	93.5 mm	43 mm	76 mm
HARTING Technology Group 19300160232	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (2) on Base Bottom	Gray	Aluminum Die Cast	Base - Box Mount	M32	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm
HARTING Technology Group 19300160267	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (2) on Hood	Gray	Aluminum Die Cast	Base - Box Mount	M32	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm
HARTING Technology Group 19300160448	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Top Entry	Locking Clip (1) on Base Bottom	Gray	Aluminum Die Cast	Hood		1.693 in	3.681 "	2.992 in	93.5 mm	43 mm	76 mm
HARTING Technology Group 19300160282	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (1) on Hood	Gray	Aluminum Die Cast	Base - Box Mount	M32	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm	Feed Through
HARTING Technology Group 19300160537	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (2) on Hood	Gray	Aluminum Die Cast	Hood	M32	1.693 in	3.681 "	2.992 in	93.5 mm	43 mm	76 mm
HARTING Technology Group 19300160736	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Bottom Entry	Locking Clip (2) on Hood Top	Gray	Aluminum Die Cast	Hood - Coupling	M25	1.693 in	3.681 "	3.087 "	93.5 mm	43 mm	78.4 mm	Cable to Cable
HARTING Technology Group 19300160428	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Top Entry	Locking Clip (2) on Base Bottom	Gray	Aluminum Die Cast	Hood		1.693 in	3.681 "	2.992 in	93.5 mm	43 mm	76 mm
