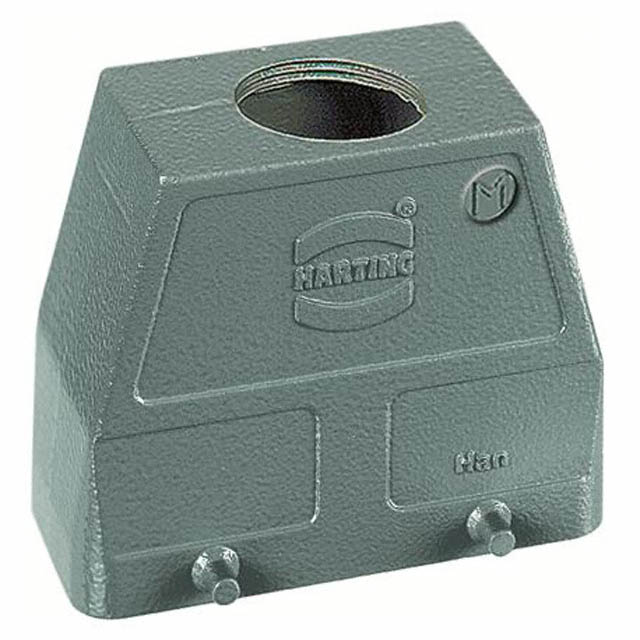

HEAVY DUTY CONNECTOR, M40 TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19300160428 Prod Declaration Cert +2

19300160428

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M40 TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

DocumentsDatasheet 19300160428 Prod Declaration Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300160428

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Top Entry

19300160 Series

Part	Housing Finish	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Lock Location	Housing Color	Housing Material	Connector Type	Thread Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features
HARTING Technology Group 19300160446	Powder Coated	16 B	IP65 IP66 IP67	125 °C	-40 °C	Top Entry	Locking Clip (1) on Base Bottom	Gray	Aluminum Die Cast	Hood	M25
HARTING Technology Group 19300160252	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (1) on Base Bottom	Gray	Aluminum Die Cast	Base - Box Mount	M32	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm
HARTING Technology Group 19300160466	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Dual Top Entry	Locking Clip (2) on Base Bottom	Gray	Aluminum Die Cast	Hood	M25	1.693 in	3.681 "	2.992 in	93.5 mm	43 mm	76 mm
HARTING Technology Group 19300160232	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (2) on Base Bottom	Gray	Aluminum Die Cast	Base - Box Mount	M32	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm
HARTING Technology Group 19300160267	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (2) on Hood	Gray	Aluminum Die Cast	Base - Box Mount	M32	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm
HARTING Technology Group 19300160448	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Top Entry	Locking Clip (1) on Base Bottom	Gray	Aluminum Die Cast	Hood		1.693 in	3.681 "	2.992 in	93.5 mm	43 mm	76 mm
HARTING Technology Group 19300160282	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (1) on Hood	Gray	Aluminum Die Cast	Base - Box Mount	M32	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm	Feed Through
HARTING Technology Group 19300160537	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Locking Clip (2) on Hood	Gray	Aluminum Die Cast	Hood	M32	1.693 in	3.681 "	2.992 in	93.5 mm	43 mm	76 mm
HARTING Technology Group 19300160736	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Bottom Entry	Locking Clip (2) on Hood Top	Gray	Aluminum Die Cast	Hood - Coupling	M25	1.693 in	3.681 "	3.087 "	93.5 mm	43 mm	78.4 mm	Cable to Cable
HARTING Technology Group 19300160428	Powder Coated	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Top Entry	Locking Clip (2) on Base Bottom	Gray	Aluminum Die Cast	Hood		1.693 in	3.681 "	2.992 in	93.5 mm	43 mm	76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.10
		10	$ 34.23
		25	$ 30.81
		50	$ 28.59
		100	$ 26.65
		250	$ 24.43
Newark	Each	1	$ 36.28
		5	$ 32.93
		10	$ 29.58
		25	$ 27.28
		50	$ 27.27
		100	$ 27.23

Description

General part information

19300160 Series

Hood Connector Top Entry M40 16B IP65 - Dust Tight, Water Resistant
