UTG12PG

Active

Souriau-Sunbank by Eaton

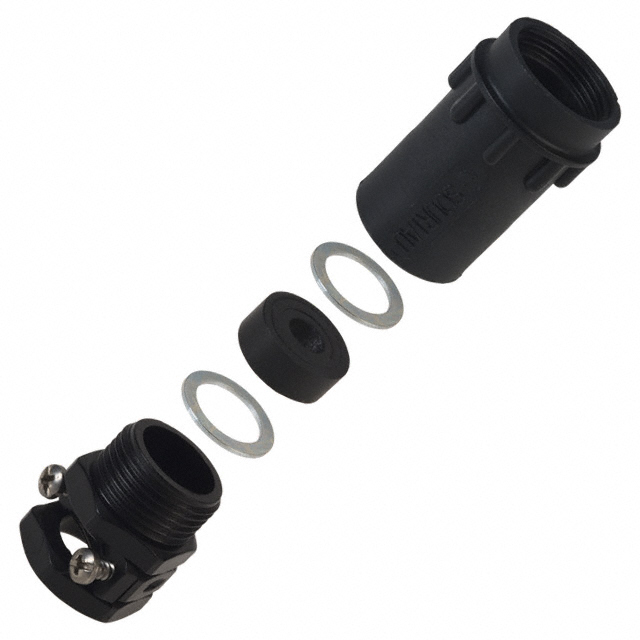

CONN BACKSH W/CLMP SZ12 BLK PG11

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UTG12PG

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ12 BLK PG11

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG12PG

Cable Exit	180 °
Cable Opening [custom]	0.629 in, 0.276 in
Cable Opening [custom]	16 mm, 7 mm
Color	Black
Diameter - Outside [diameter]	0.945 in
Diameter - Outside [diameter]	24 mm
Features	Clamp Screws, Cable Gland, Washers
For Use With/Related Products	Trim Trio® UTG and UTP Connectors
Includes	2 Washers, 2 Screws, 1 Backshell, 1 Cable Gland, 1 Cable Clamp
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Thermoplastic
Shell Size - Insert	12
Thread Size	PG11
Type	Backshell, Cable Clamp

UTG12 Series

Part	Material	For Use With/Related Products	Cable Exit	Type	Shell Size - Insert	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Thread Size	Shielding	Features	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Size	Orientation	Number of Positions	Contact Type	Material Flammability Rating	Insert Material	Fastening Type	Mounting Type	Contact Shape	Note	Housing Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Includes	Ingress Protection	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Souriau-Sunbank by Eaton UTG12AD	Metal	Trim Trio® UTG and UTP Connectors	180 °	Backshell Heat Shrink Adapter	12	Anodized	0.945 in	24 mm	Black	11/16-24 UNEF
Souriau-Sunbank by Eaton UTG12LPGN	Brass	Trim Trio® UTG and UTP Connectors	90 °	Backshell Cable Clamp	12				Silver	PG11	Shielded	Clamp Screws	0.276 in 0.629 in	7 mm 16 mm
Souriau-Sunbank by Eaton UTG12028S				For Female Sockets							Unshielded				-55 °C	125 °C	Receptacle Housing	16	N	28	Crimp	UL94 V-0	Thermoplastic Glass Filled	Bayonet Lock	Free Hanging (In-Line)	Circular	Contacts Not Included	Black Silver	28	20
Souriau-Sunbank by Eaton UTG12448P
Souriau-Sunbank by Eaton UTG12PG	Thermoplastic	Trim Trio® UTG and UTP Connectors	180 °	Backshell Cable Clamp	12		0.945 in	24 mm	Black	PG11		Cable Gland Clamp Screws Washers	0.276 in 0.629 in	7 mm 16 mm																	1 Backshell 1 Cable Clamp 1 Cable Gland 2 Screws 2 Washers	IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTG12AC	Thermoplastic	Trim Trio® UTG and UTP Connectors	180 °	Backshell Cable Clamp	12		0.945 in	24 mm	Black	11/16-24 UNEF		Clamp Screws																			1 Backshell 2 pc Cable Clamp 2 Screws		0.118 in	0.504 in	3 mm	12.8 mm
Souriau-Sunbank by Eaton UTG12235P				For Male Pins							Unshielded				-55 °C	125 °C	Receptacle Housing	16	N	35	Crimp	UL94 V-0	Thermoplastic Glass Filled	Bayonet Lock	Free Hanging (In-Line)	Circular	Contacts Not Included	Black Silver	35	22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.13
		10	$ 11.64
		25	$ 11.19
		50	$ 10.74
		100	$ 10.15
		250	$ 9.25
		500	$ 8.66
		1000	$ 7.94

Description

General part information

UTG12 Series

Black Connector Backshell, Cable Clamp PG11 12
