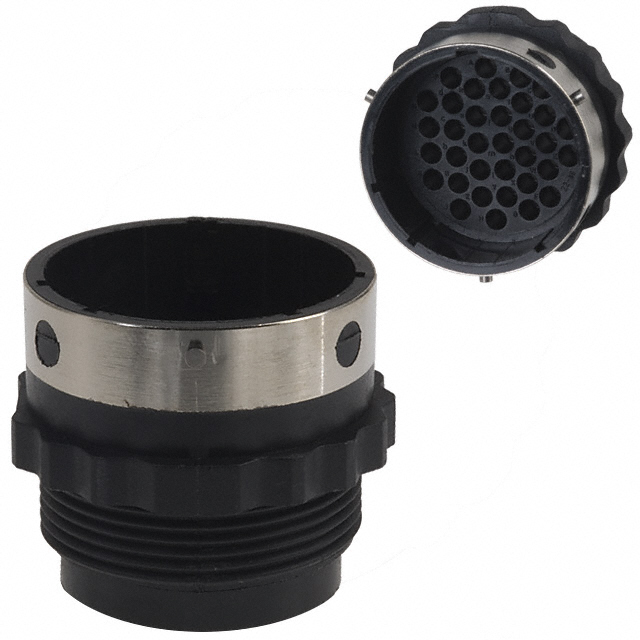

UTG12235P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG MALE 35POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG12235P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black, Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	35
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	22
Shielding	Unshielded
Type	For Male Pins

UTG12 Series

Part	Material	For Use With/Related Products	Cable Exit	Type	Shell Size - Insert	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Thread Size	Shielding	Features	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Size	Orientation	Number of Positions	Contact Type	Material Flammability Rating	Insert Material	Fastening Type	Mounting Type	Contact Shape	Note	Housing Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Includes	Ingress Protection	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Souriau-Sunbank by Eaton UTG12AD	Metal	Trim Trio® UTG and UTP Connectors	180 °	Backshell Heat Shrink Adapter	12	Anodized	0.945 in	24 mm	Black	11/16-24 UNEF
Souriau-Sunbank by Eaton UTG12LPGN	Brass	Trim Trio® UTG and UTP Connectors	90 °	Backshell Cable Clamp	12				Silver	PG11	Shielded	Clamp Screws	0.276 in 0.629 in	7 mm 16 mm
Souriau-Sunbank by Eaton UTG12028S				For Female Sockets							Unshielded				-55 °C	125 °C	Receptacle Housing	16	N	28	Crimp	UL94 V-0	Thermoplastic Glass Filled	Bayonet Lock	Free Hanging (In-Line)	Circular	Contacts Not Included	Black Silver	28	20
Souriau-Sunbank by Eaton UTG12448P
Souriau-Sunbank by Eaton UTG12PG	Thermoplastic	Trim Trio® UTG and UTP Connectors	180 °	Backshell Cable Clamp	12		0.945 in	24 mm	Black	PG11		Cable Gland Clamp Screws Washers	0.276 in 0.629 in	7 mm 16 mm																	1 Backshell 1 Cable Clamp 1 Cable Gland 2 Screws 2 Washers	IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTG12AC	Thermoplastic	Trim Trio® UTG and UTP Connectors	180 °	Backshell Cable Clamp	12		0.945 in	24 mm	Black	11/16-24 UNEF		Clamp Screws																			1 Backshell 2 pc Cable Clamp 2 Screws		0.118 in	0.504 in	3 mm	12.8 mm
Souriau-Sunbank by Eaton UTG12235P				For Male Pins							Unshielded				-55 °C	125 °C	Receptacle Housing	16	N	35	Crimp	UL94 V-0	Thermoplastic Glass Filled	Bayonet Lock	Free Hanging (In-Line)	Circular	Contacts Not Included	Black Silver	35	22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.83

Description

General part information

UTG12 Series

35 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
