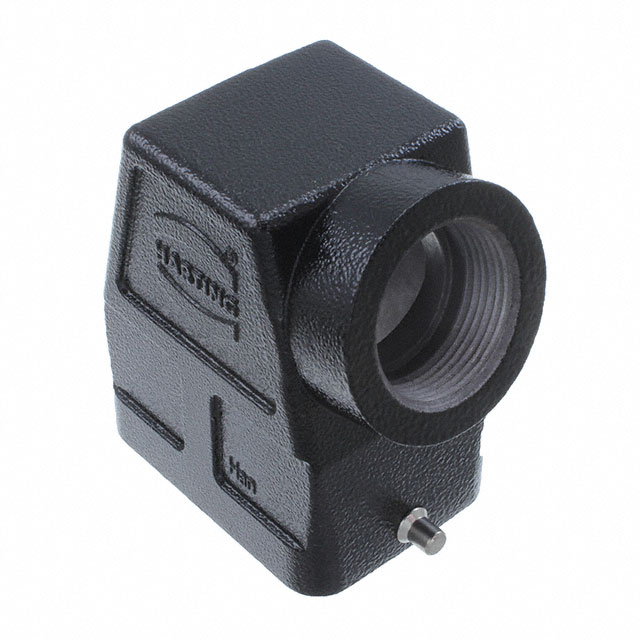

09370060542 - 09370060542

09370060542

Active
HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; HAN® M; HIGH

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification09370060542
Connector TypeHood
Housing ColorBlack
Housing FinishPowder Coated
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size6B
Size / Dimension [x]2.362 in
Size / Dimension [x]60 mm
Size / Dimension [y]43 mm
Size / Dimension [y]1.693 in
Size / Dimension [z]2.953 in
Size / Dimension [z]75 mm
StyleSide Entry
Thread SizePG21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 129.48
10$ 98.54
25$ 89.56
50$ 83.72
100$ 78.58
NewarkEach 1$ 116.26
10$ 109.72
25$ 106.46
50$ 98.62
100$ 93.40
TMEN/A 1$ 80.07
3$ 71.65
5$ 63.21

Description

General part information

09370060 Series

Hood Connector Side Entry PG21 6B IP65 - Dust Tight, Water Resistant
