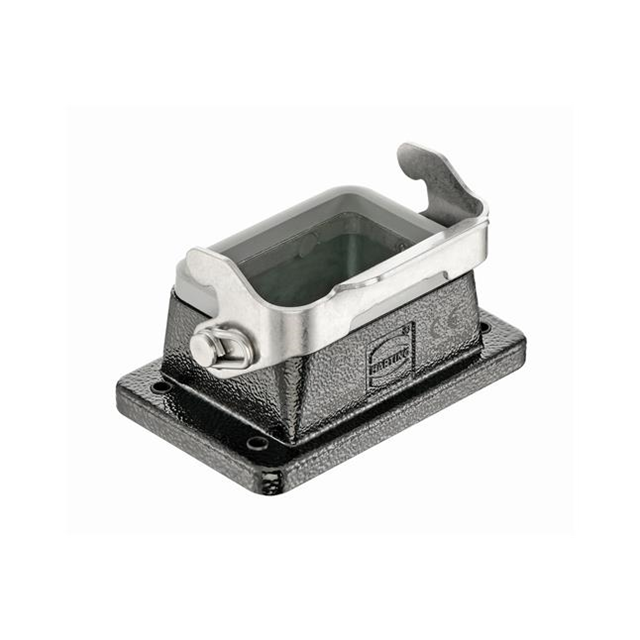

09370060392

Active

HARTING Technology Group

6B MARINE BULKHEAD REAR FIT HOUS

Search across all available documentation for this part.

Active

HARTING Technology Group

6B MARINE BULKHEAD REAR FIT HOUS

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Connector Type	Housing Finish	Style	Housing Material	Size	Lock Location	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09370060542	IP65 - Dust Tight Water Resistant	Hood	Powder Coated	Side Entry	Aluminum Die Cast	6B	Locking Clip (1) on Base Bottom	PG21	125 °C	-40 °C	Black	2.953 in	43 mm	2.362 in	60 mm	1.693 in	75 mm
HARTING Technology Group 09370060392	IP66	Base - Panel Mount	Powder Coated	Bottom Entry	Aluminum Die Cast	6B	Locking Clip (1) on Base Bottom		125 °C	-40 °C	Black	1.354 in	55 mm	3.37 in	85.6 mm	2.165 in	34.4 mm
HARTING Technology Group 09370060391	IP66	Base - Panel Mount	Powder Coated	Bottom Entry	Aluminum Die Cast	6B	Locking Clip (1) on Base Bottom		125 °C	-40 °C	Black	1.354 in	55 mm	3.37 in	85.6 mm	2.165 in	34.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 6B IP66 - Dust Tight, Water Resistant
