52015740

Active

LAPP

CABLE GLAND, PG16, 14 MM, 14 MM, BRASS, SILVER, IP68

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

52015740

Active

LAPP

CABLE GLAND, PG16, 14 MM, 14 MM, BRASS, SILVER, IP68

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	52015740

Color	Silver
Includes	O-Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; Nema 6P
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in
Thread Length	0.256 in
Thread Length	6.5 mm
Thread Size	PG16
Type	Cable Gland

52015 Series

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Thread Length	Thread Length	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Color	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max] [diameter]
LAPP 52015710	8 mm	0.315 in	O-Ring	0.236 in	6 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG9	0.157 in	4 mm	IP68 - Dust Tight Waterproof; Nema 6P	Silver
LAPP 52015770	5 mm	0.197 in	O-Ring			Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG7	0.078 in		IP68 - Dust Tight Waterproof; Nema 6P	Silver	1.98 mm
LAPP 52015810	13 mm	0.512 in	O-Ring	0.256 in	6.5 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG16			IP68 - Dust Tight Waterproof; Nema 6P	Silver		6 mm	0.236 in
LAPP 52015830			O-Ring	0.315 in	8 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG29			IP68 - Dust Tight Waterproof; Nema 6P	Silver		10.5 mm	0.413 in	20.02 mm	0.788 in
LAPP 52015740			O-Ring	0.256 in	6.5 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG16			IP68 - Dust Tight Waterproof; Nema 6P	Silver		8 mm	0.315 in	14 mm	0.551 "
LAPP 52015780	6 mm	0.236 in	O-Ring	0.236 in	6 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG9	0.078 in		IP68 - Dust Tight Waterproof; Nema 6P	Silver	1.98 mm
LAPP 52015800	0.354 in		O-Ring	0.256 in	6.5 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG13	0.157 in	4 mm	IP68 - Dust Tight Waterproof; Nema 6P	Silver						9 mm
LAPP 52015700	6.5 mm	0.256 "	O-Ring			Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG7	0.078 in		IP68 - Dust Tight Waterproof; Nema 6P	Silver	1.98 mm
LAPP 52015820	16 mm	0.63 "	O-Ring	0.276 in	7 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG21			IP68 - Dust Tight Waterproof; Nema 6P	Silver		8 mm	0.315 in
LAPP 52015750	18.01 mm	0.709 in	O-Ring	0.276 in	7 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG21			IP68 - Dust Tight Waterproof; Nema 6P	Silver		11 mm	0.433 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.47
		10	$ 5.82
		25	$ 5.48
		50	$ 5.34
		100	$ 5.20
		250	$ 4.95
Newark	Each	1	$ 6.32
		10	$ 5.69
		50	$ 5.31
		100	$ 4.90

Description

General part information

52015 Series

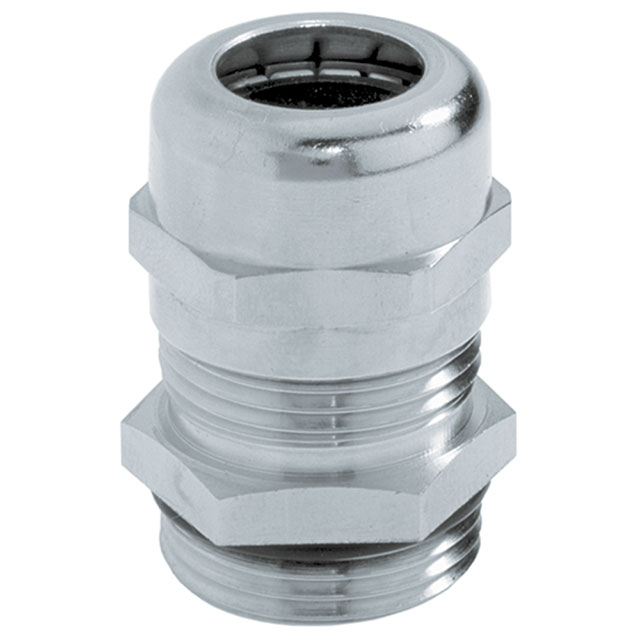

The 52015740 is a SKINTOP® MS Cable Gland made of nickel plate brass with maximum reliability. It is used in areas where mechanical, chemical stability is critical and it combines high quality with regard to consistency and reliability.
