52015780

Active

LAPP

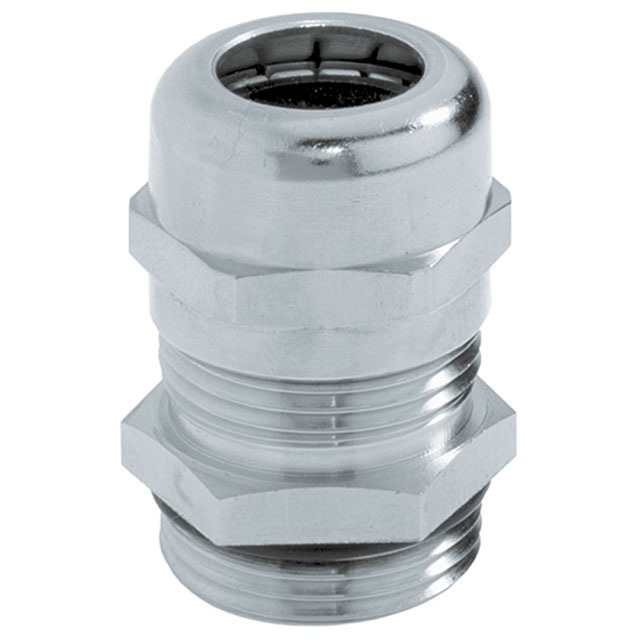

CABLE GLAND 1.98-6MM PG9 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

52015780

Active

LAPP

CABLE GLAND 1.98-6MM PG9 BRASS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	52015780

Color	Silver
Includes	O-Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; Nema 6P
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.236 in
Outside Cable Diameter (Max) [Max] [diameter]	6 mm
Outside Cable Diameter (Min)	1.98 mm
Outside Cable Diameter (Min) [Min]	0.078 in
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	PG9
Type	Cable Gland

52015 Series

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Thread Length	Thread Length	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Color	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max] [diameter]
LAPP 52015710	8 mm	0.315 in	O-Ring	0.236 in	6 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG9	0.157 in	4 mm	IP68 - Dust Tight Waterproof; Nema 6P	Silver
LAPP 52015770	5 mm	0.197 in	O-Ring			Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG7	0.078 in		IP68 - Dust Tight Waterproof; Nema 6P	Silver	1.98 mm
LAPP 52015810	13 mm	0.512 in	O-Ring	0.256 in	6.5 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG16			IP68 - Dust Tight Waterproof; Nema 6P	Silver		6 mm	0.236 in
LAPP 52015830			O-Ring	0.315 in	8 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG29			IP68 - Dust Tight Waterproof; Nema 6P	Silver		10.5 mm	0.413 in	20.02 mm	0.788 in
LAPP 52015740			O-Ring	0.256 in	6.5 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG16			IP68 - Dust Tight Waterproof; Nema 6P	Silver		8 mm	0.315 in	14 mm	0.551 "
LAPP 52015780	6 mm	0.236 in	O-Ring	0.236 in	6 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG9	0.078 in		IP68 - Dust Tight Waterproof; Nema 6P	Silver	1.98 mm
LAPP 52015800	0.354 in		O-Ring	0.256 in	6.5 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG13	0.157 in	4 mm	IP68 - Dust Tight Waterproof; Nema 6P	Silver						9 mm
LAPP 52015700	6.5 mm	0.256 "	O-Ring			Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG7	0.078 in		IP68 - Dust Tight Waterproof; Nema 6P	Silver	1.98 mm
LAPP 52015820	16 mm	0.63 "	O-Ring	0.276 in	7 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG21			IP68 - Dust Tight Waterproof; Nema 6P	Silver		8 mm	0.315 in
LAPP 52015750	18.01 mm	0.709 in	O-Ring	0.276 in	7 mm	Cable Gland	Brass Nickel Plated	100 °C	-40 °C	PG21			IP68 - Dust Tight Waterproof; Nema 6P	Silver		11 mm	0.433 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.95
		10	$ 7.19
		25	$ 6.79
		50	$ 6.63
		100	$ 6.29
		300	$ 5.63
		500	$ 5.30
		1000	$ 4.64
Newark	Each	1	$ 4.55
		10	$ 4.10
		50	$ 3.82
		100	$ 3.53

Description

General part information

52015 Series

Cable Gland Brass, Nickel Plated PG9 Silver

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
