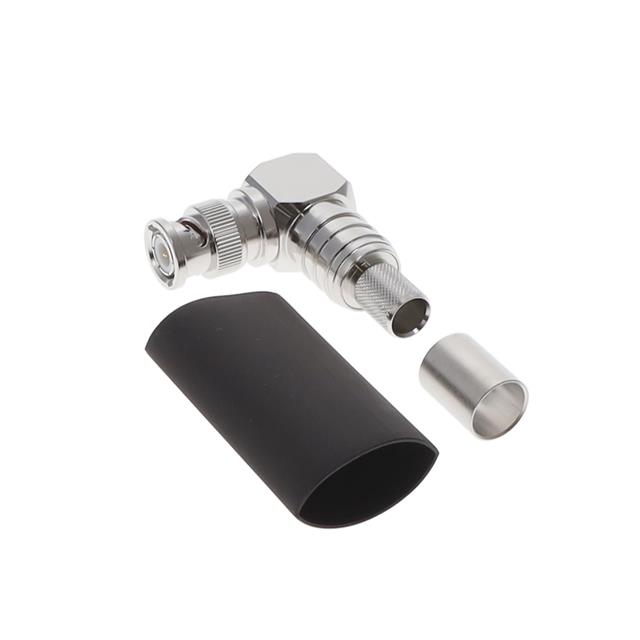

EZ-400-BM-RA-X

Active

Amphenol Times Microwave Systems

BNC-MALE (PLUG) CRIMP RIGHT ANGL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-400-BM-RA-X

Active

Amphenol Times Microwave Systems

BNC-MALE (PLUG) CRIMP RIGHT ANGL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-400-BM-RA-X

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-400
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp

EZ-400 Series

Part	Connector Type	Mounting Type	Dielectric Material	Housing Color	Cable Group	Connector Style	Frequency - Max [Max]	Contact Termination	Body Material	Voltage Rating	Impedance	Number of Ports	Center Contact Plating	Mating Cycles	Shield Termination	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Mounting Feature	Fastening Type	Insertion Loss
Amphenol Times Microwave Systems EZ-400-TF-PL-X	Female Socket Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	TNC	6000 MHz	Push On	Brass	2.5 kV	50 Ohms	1	Gold	500	Crimp	Beryllium Copper	125 °C	-40 °C	White Bronze
Amphenol Times Microwave Systems EZ-400-TF-X	Female Socket Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	TNC	6000 MHz	Push On	Brass	750 VDC	50 Ohms	1	Gold	500	Crimp	Phosphor Bronze	125 °C	-55 °C	White Bronze
Amphenol Times Microwave Systems EZ-400-NF-BH-X	Female Socket Jack		Polytetrafluoroethylene (PTFE)	Silver	LMR-400	N Type	6000 MHz	Push On	Brass	2.5 kV	50 Ohms	1	Gold	500	Crimp	Beryllium Copper	125 °C	-40 °C	White Bronze	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems EZ-400-4310M-X	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	4.3/10	6000 MHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	125 °C	-40 °C	Tin
Amphenol Times Microwave Systems EZ-400-TM-PL-X	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	TNC	6000 MHz	Push On	Brass	2.5 kV	50 Ohms	1	Gold	500	Crimp	Beryllium Copper	125 °C	-40 °C	White Bronze
Amphenol Times Microwave Systems EZ-400-NMH-75-X	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400-75	N Type	3 GHz	Push On	Brass		75 Ohms	1	Gold	500	Crimp	Beryllium Copper	125 °C	-40 °C	White Bronze
Amphenol Times Microwave Systems EZ-400-QNF-X	Female Socket Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	QN	6000 MHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	125 °C	-40 °C	Tin		Snap-On
Amphenol Times Microwave Systems EZ-400-TM-RA-X	Male Pin Plug	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	TNC	6000 MHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	125 °C	-55 °C	White Bronze			0.1 dB
Amphenol Times Microwave Systems EZ-400-QNM-X	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	QN	6000 MHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	125 °C	-40 °C	Tin		Snap-On
Amphenol Times Microwave Systems EZ-400-BM-RA-X	Male Pin Plug	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	BNC	4 GHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	155 °C	-55 °C	White Bronze		Bayonet Lock	0.1 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.13
		10	$ 16.75
		25	$ 16.03
		50	$ 15.51
		100	$ 15.00
		250	$ 14.17
		500	$ 13.76

Description

General part information

EZ-400 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Push On
